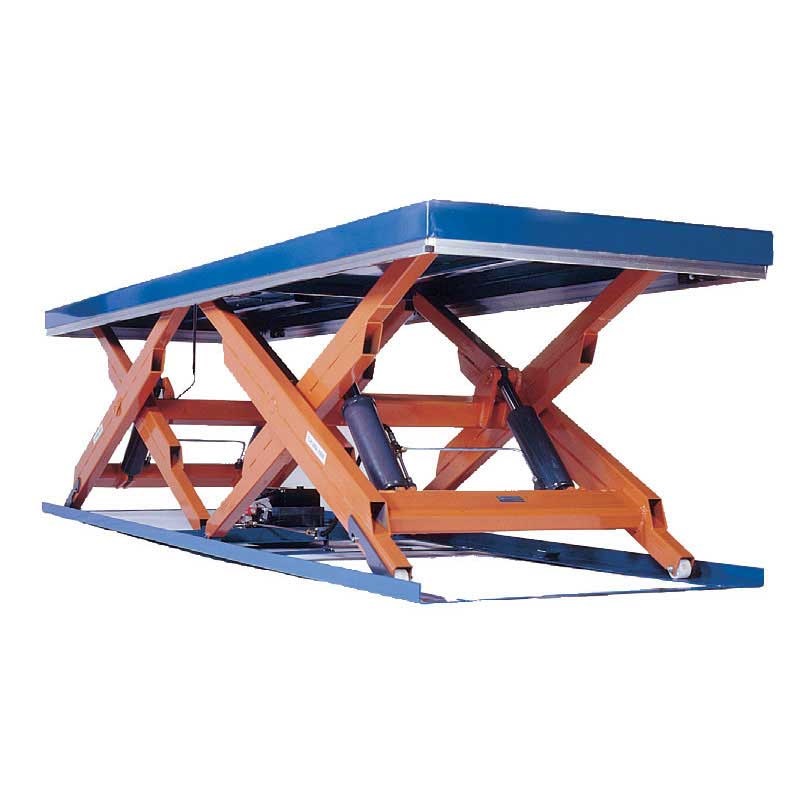

Double Horizontal Scissor Lifts 2,000kg to 8,000kg capacity
Double Horizontal Scissor Lifts 2,000kg to 8,000kg capacity
View larger image
Product PDF

From: £4,862.07 (ex VAT)

Choose Order Ref:
Quantity:
Quantity discount pricing.
Quantity Per Item You Save
2+ 2.00%
  • Two synchronised scissors
  • Maximum stability for long, heavy loads
  • For machine feeding, stacking and loading, palletising and loading bays
  • Safety is paramount, all models comply with EN1570 European Standard
  • Low voltage control circuits
  • CE marked
  • Hose failure safety valve
  • Key switch prevents unauthorised use
  • Easy push-button controls with emergency stop
  • Safety trip bars lock table if descent is obstructed
  • Fail safe automatic pressure relief valve
  • Mechanical stays for safe maintenance access

Scissor Lifts are normally supplied for use on 380/420V 3-Phase supplies.

Please enquire for 230V single phase.

Capacity (kg) Folded
(mm)		 Stroke
(mm)		 Platform
Size (mm)		 Rise Time
(sec)		 Order Ref
2000 180 820 2600 x 800 30 TLH2000
2000 200 1300 4000 x 800 32 TAH2000
3000 230 1100 3400 x 900 35 TMH3000
4000 250 1500 4400 x 1200 55 TSH4000
6000 300 1700 5000 x 1300 53 TTH6000
8000 350 1500 4400 x 1200 53 TSH8000
