; Fork Extension Sleeves - ESE Direct

Fork Extension Sleeves

from £250.70 per pair (ex. VAT) with free delivery

FREE Shipping on this product

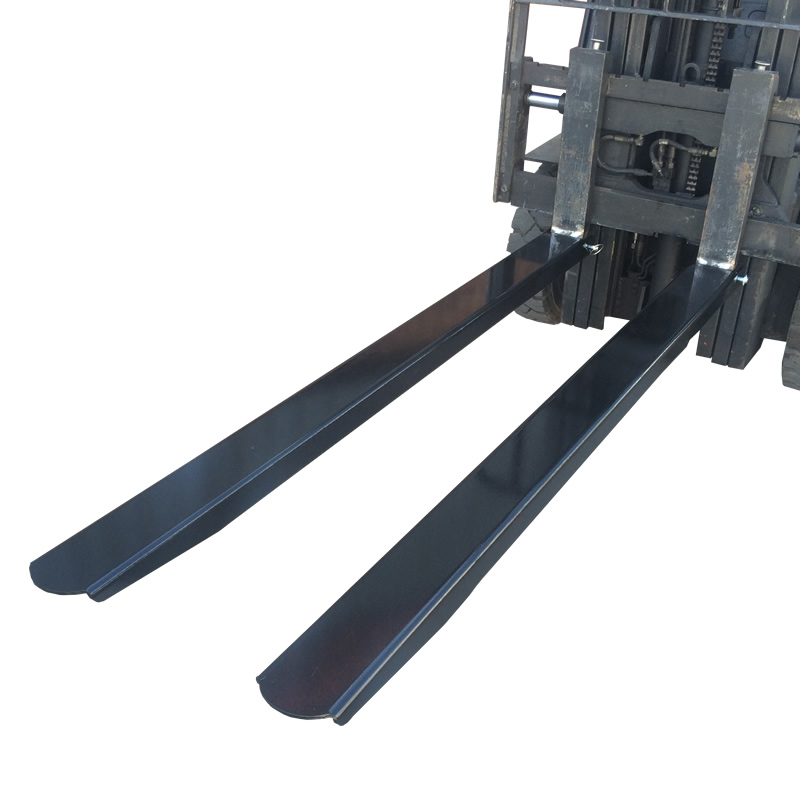

Fork Extension Sleeves

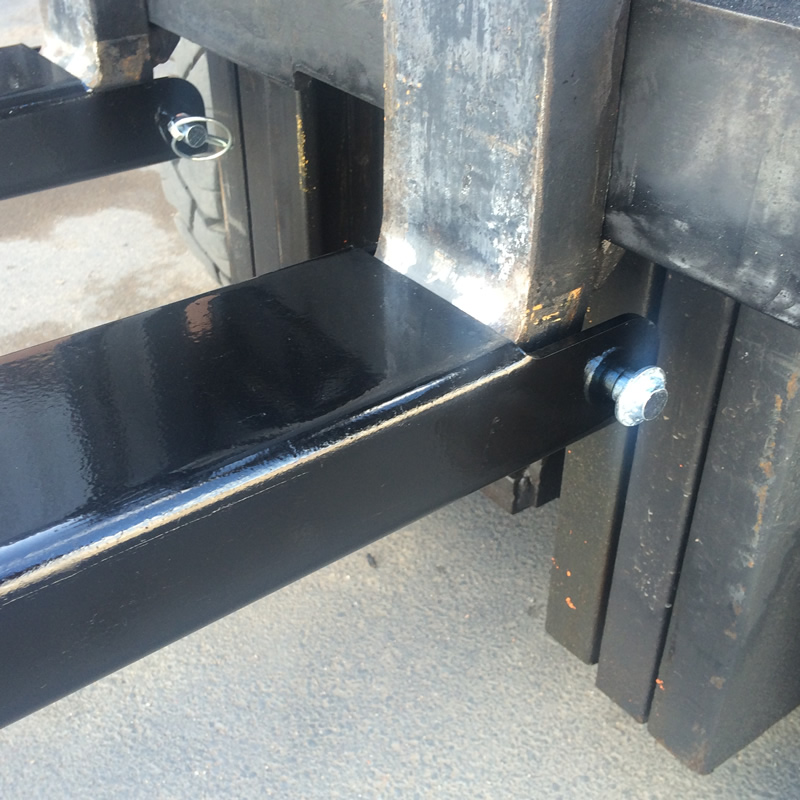

Fork lift extension sleeve lynch pin

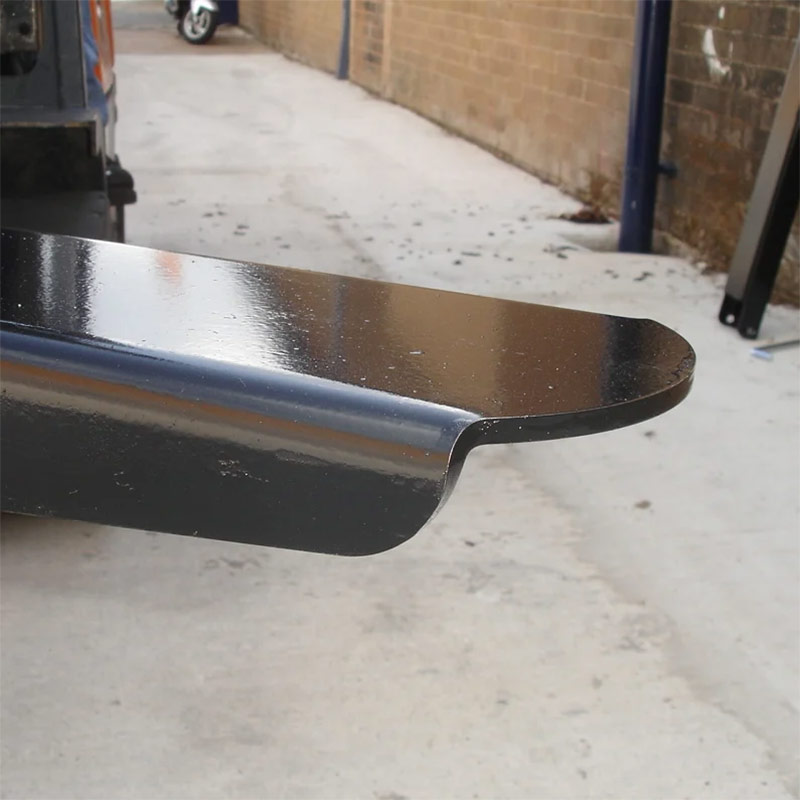

Fork lift extention sleeve toe
1 year
Country of origin: UK made in
the UK

Key Features

  • Bolt on forklift fork extension sleeves
  • Slip on extensions which reduce the overall height by 6mm are available on request
  • Secured with a removable zinc plated steel bar and safety lynch pin
  • Fork extensions are 69mm deep overall
  • Manufactured from 6mm material
  • Fully formed and profiled toe section reinforced for additional strength
  • Supplied in pairs
  • Finished in a semi gloss black (RAL9005)
  • Fork extensions do not affect the carrying capacity of the forklift

Note: When ordering please specify overall length of extension shoe, existing fork length, width and thickness

3-5 working days Delivery info
CodeFork Dimensions (mm) Weight
(Ex. VAT)
IFE-472100 x 183050
1-2 £263.90
3+ £250.70
IFE-484100 x 213056
1-2 £287.10
3+ £272.74
IFE-572125 x 183061
1-2 £275.50
3+ £261.72
IFE-584125 x 213069
1-2 £295.80
3+ £281.01
IFE-696150 x 243840
1-2 £330.60
3+ £314.07
IFE-684150 x 213079
1-2 £319.00
3+ £303.05
IFE-496100 x 243834
1-2 £295.80
3+ £281.01
IFE-596125 x 243836
1-2 £310.30
3+ £294.78
3-5 working days Delivery info

Product description

A simple and effective handling solution for the occasional need to stabilise long and awkward loads without the risk of damage.

The need for rapid and efficient handling in modern warehouses, loading docks and factories can often lead to compromises in driver safety, as well as damaged equipment and goods. Fork extension sleeves help minimise these risks in an easy and cost-effective way.

Standard forks are often too short for oversized pallets and attempting to lift or transport loads or goods that are wider than the forks can be dangerous. When there is an insufficient load-bearing surface supporting the load while lifting, the entire forklift could potentially tip over. The fork extension sleeve is a simple, inexpensive and safe way to extend the lift truck fork.

Constructed using heavy-duty steel, these fork extension sleeves slide easily onto existing forks and offer a simple and effective solution to handling the occasional long or awkward load and pallet without the risk of damage or injury. These fork sleeves are secured in place by a removable zinc plated steel bar and safety lynch pin, ensuring that the sleeves do not come loose whilst lifting heavy pallets and valuable goods.

When placing an order for these fork extension sleeves, it is necessary to specify the total length of the extension shoe, width and thickness, existing fork length to ensure a correct fit.

Fork extension sleeves are available in nine sizes dependant on length required and the width of your fork lifts standard forks. All fork extension sleeves are sold in pairs.

Customer Experience Feedback

5 star5 star5 star5 star5 stareasy to deal with
Easy to deal with, delivered on time, would buy from again & reccomend.

Product Reviews

5 star
4 star
3 star
2 star
1 star
29-Oct-2018 - Mark Netherway -

IFE-572 - Good quality and very sturdy, advice given was spot on.

17-May-2018 - Ashley Bond -

IFE-472 - they are just what I ordered

14-Nov-2014 - Anonymous Trusted Customer -

IFE-472 - These are used in our ground work company and have been very usefull

26-Nov-2013 - Anonymous Trusted Customer -

IFE-684 - have not used it yet still waiting for parts

Delivery & Returns

Delivery InformationDelivery Charges

Free UK mainland delivery on orders over £45 ex.VAT.

Orders under £45 ex.VAT - £4.50 delivery charge.

Postcode exceptions: HS, KW, ZE, IV, AB, DD, PH, PA, GY, JE, IM, BT, Isle of Anglesey, Isle of Wight and Eire.

Standard deliveries are Monday to Friday 8.30am to 5.30pm to the GROUND FLOOR or KERBSIDE only (unless previously agreed in writing).
We are unable to confirm exact delivery times, but we can usually confirm a day if you let us know in advance.

Saturday deliveries, timed AM or PM or above ground floor deliveries are available at extra cost.
Oversized products requiring a crane or hiab offload may incur an additional charge.
Contact us for more information.

Estimated Delivery Times

Lead times are displayed in working days, which excludes weekends & bank holidays.
During these unprecedented times, occasionally we are experiencing unexpected delays. If you have not received your item within the lead time shown please contact us and we will look into it as a matter of urgency.
Stock levels change daily, if you have a specific delivery requirement please contact us and we will do our best to help.

At the time of delivery

An authorised person must be present to sign for delivery.
Failed attempts may result in a return delivery charge.
A request to leave goods without signature is entirely at your own risk.

Please check your delivered goods carefully.
ESE Direct cannot accept claims for shortage or damage after goods have been signed for.
The only exception is proof of a carrier note that is marked as damaged.
We must also be notified in writing within 24 hours of the delivery.
Please do not sign for any goods as 'unexamined' or 'unchecked' as carriers will not accept liability for any subsequent damage.

Problems with Deliveries

Nobody is perfect, unfortunately damages & mistakes happen.
In this case, please email customer services on [email protected] as soon you receive your item (including a photo would really help speed things up).
Or call Customer Services on 0800 161 3437 and we will deal with you as a priority.


As part of our commitment to the environment, much of the packaging we use can be recycled.

Customer Questions

Anonymous User - 08 Sep 2015

Q. What is the maximum length of a pair?

A. The maximum length per pair of the fork extension sleeves must not exceed more than 50% of your current fork length
