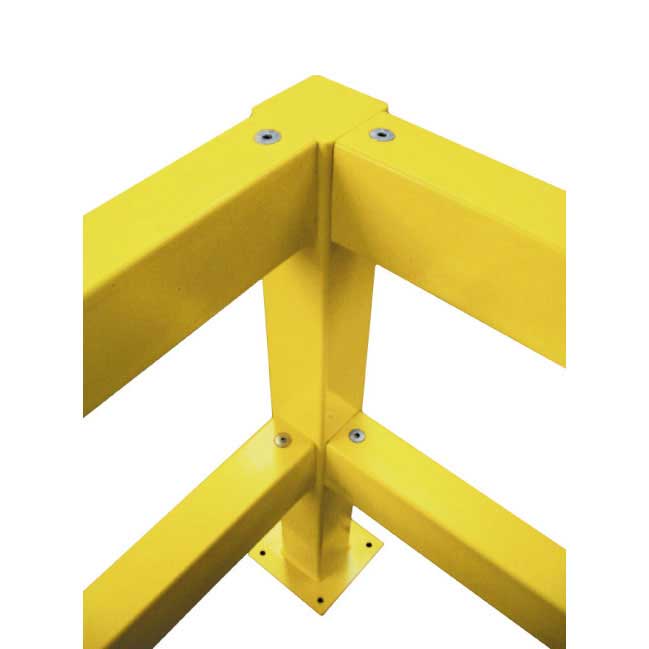

Impact Protection Railing Fitting Detail

10-15 working day delivery

supplied
in kit form

year
guarantee

Heavy Duty Impact Protection Railing

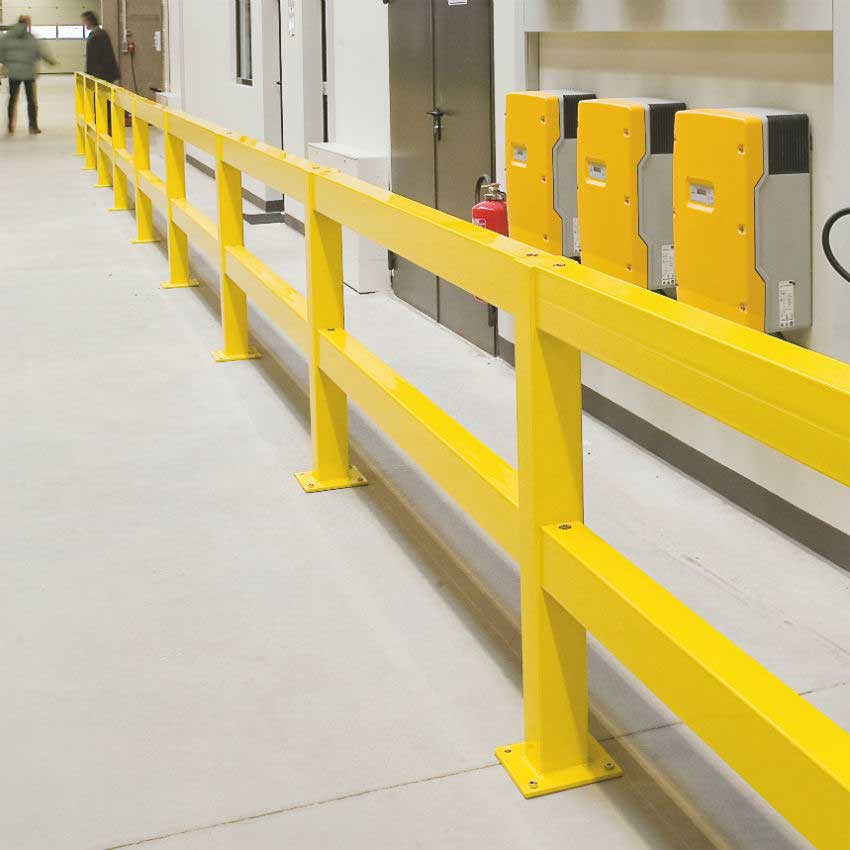

Powder coated protection railing for internal use
Galvanised and powder-coated protection railing for external use
Quality, strong modular design that is easy to install
TUV-tested according to DGUV 108-007
Finished in a high visibility yellow colour
Uprights 100mm x 100mm steel box section
Horizontal rails 120mm x 80mm steel section

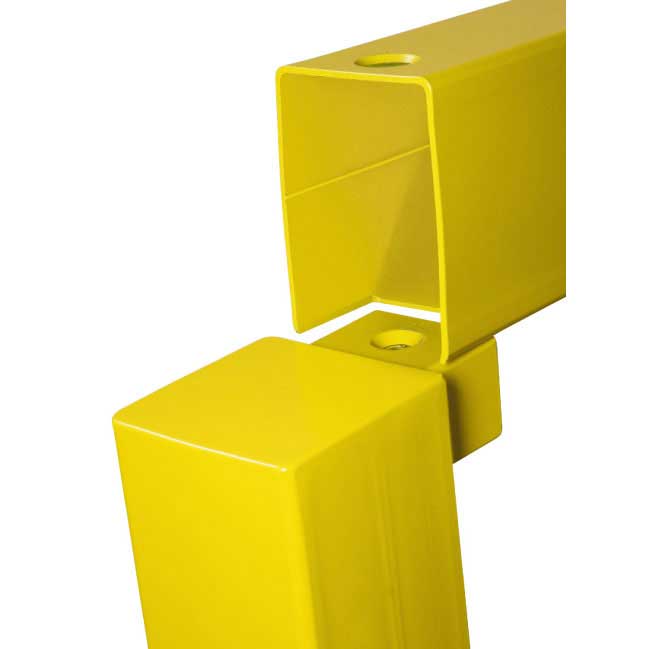

Counter sunk bolts secure rails to posts
Easy to extend & modify at any stage
Base plate measures 200mm x 200mm x 10mm (with 4 drilled holes)
Perfect for heavy duty protection
Optional manual or self-closing gate available for internal use only
Gate can be opened up to 90° either inwards or outwards
Shock absorbing pads allow the uprights to deflects up to 10 degrees each way - installed with the anchor set
Anchor set fixes x 2 shock absorber pads

Impact Protection

Code Description Dimensions
(mm) For use Price
ex. VAT

194.16.094

End Post

500 High

Internally

1 - 2

£72.85

3 - 9

£71.03

£69.21

194.18.550

Centre Post

500 High

Internally

1 - 2

£79.35

3 - 9

£77.37

£75.38

194.13.760

Corner Post

500 High

Internally

1 - 2

£80.75

3 - 9

£78.73

£76.71

194.14.244

End Post

1000 High

Internally

1 - 2

£111.15

3 - 9

£108.37

£105.59

194.17.026

Centre Post

1000 High

Internally

1 - 2

£124.55

3 - 9

£121.44

£118.32

194.18.205

Corner Post

1000 High

Internally

1 - 2

£129.45

3 - 9

£126.21

£122.98

194.18.997

Barrier Rail

1000 Long

Internally

1 - 2

£76.95

3 - 9

£75.03

£73.10

194.16.172

Barrier Rail

1200 Long

Internally

1 - 2

£83.25

3 - 9

£81.17

£79.09

194.15.942

Barrier Rail

1500 Long

Internally

1 - 2

£102.75

3 - 9

£100.18

£97.61

194.13.434

Barrier Rail

2000 Long

Internally

1 - 2

£134.05

3 - 9

£130.70

£127.35

194.29.743

Manual Closing Gate

Gate Size: 835 w x 475mm h
Overall Size 905 w x 520mm h

Internally

1 - 2

£237.85

3 - 9

£231.90

£225.96

194.26.359

Self Closing Gate

Gate Size: 835 w x 475mm h
Overall Size 905 w x 520mm h

Internally

1 - 2

£480.85

3 - 9

£468.83

£456.81

194.15.765

End Post

500 High

Externally

1 - 2

£113.65

3 - 9

£110.81

£107.97

194.18.142

Centre Post

500 High

Externally

1 - 2

£123.70

3 - 9

£120.61

£117.52

194.15.032

Corner Post

500 High

Externally

1 - 2

£125.55

3 - 9

£122.41

£119.27

194.13.501

End Post

1000 High

Externally

1 - 2

£169.90

3 - 9

£165.65

£161.41

194.13.894

Centre Post

1000 High

Externally

1 - 2

£189.75

3 - 9

£185.01

£180.26

194.15.572

Corner Post

1000 High

Externally

1 - 2

£196.95

3 - 9

£192.03

£187.10

194.16.672

Barrier Rail

1000 Long

Externally

1 - 2

£119.05

3 - 9

£116.07

£113.10

194.16.449

Barrier Rail

1500 Long

Externally

1 - 2

£159.00

3 - 9

£155.03

£151.05

194.14.863

Barrier Rail

1200 Long

Externally

1 - 2

£128.30

3 - 9

£125.09

£121.89

194.13.826

Barrier Rail

2000 Long

Externally

1 - 2

£207.45

3 - 9

£202.26

£197.08

422.21.456

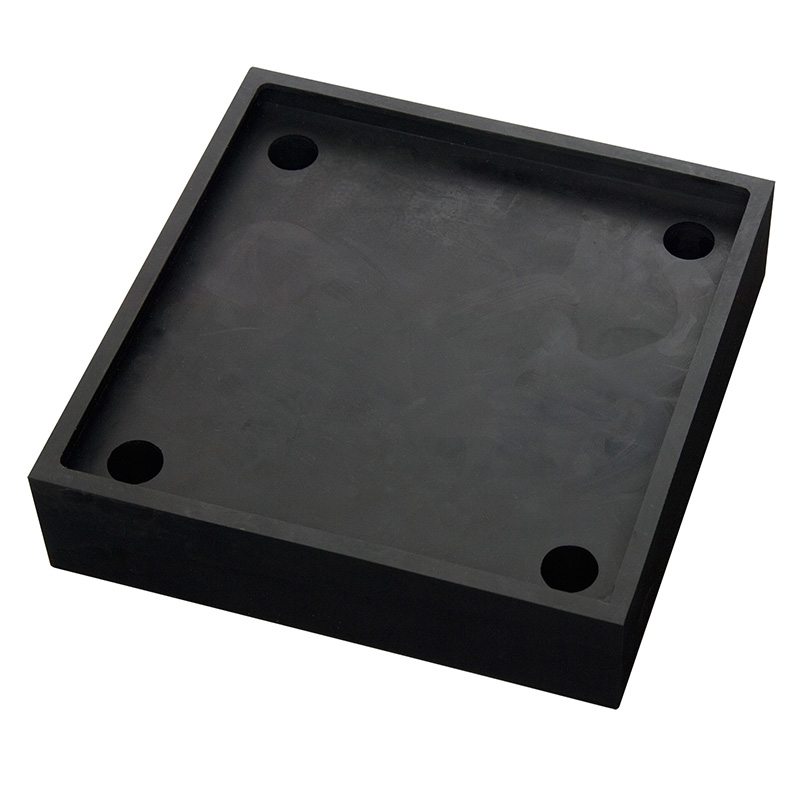

Shock Absorber Pads

50 h x 206 w x 206 d

Internal and external

1 - 2

£39.15

3 - 9

£38.17

£37.19

109.20.858

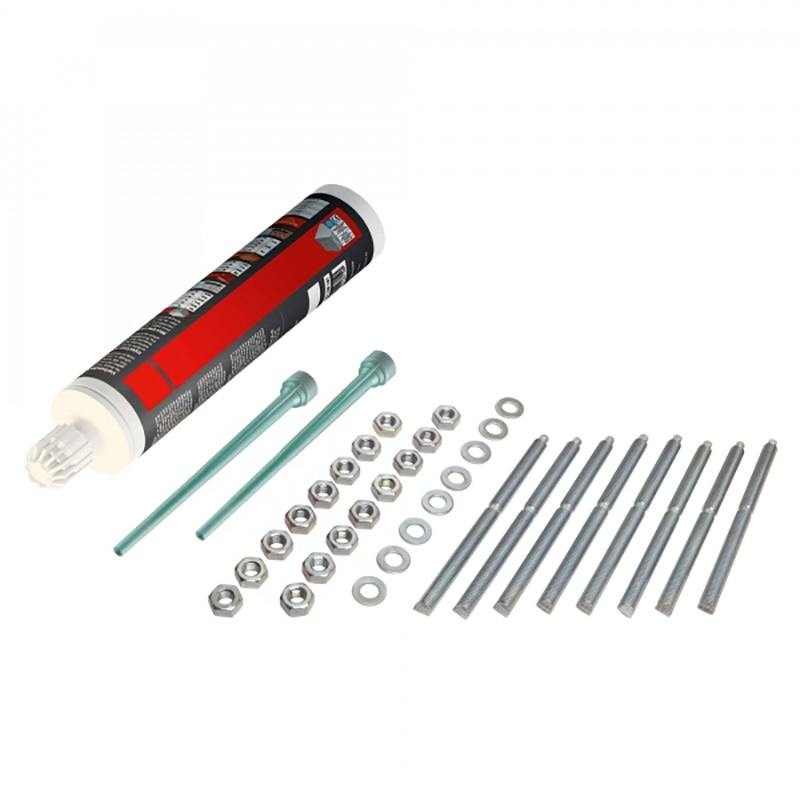

Anchor Set
for Shock Absorbers

300 h x 100 w x 100 d

Internal and External

1 - 2

£44.15

3 - 9

£43.05

£41.94

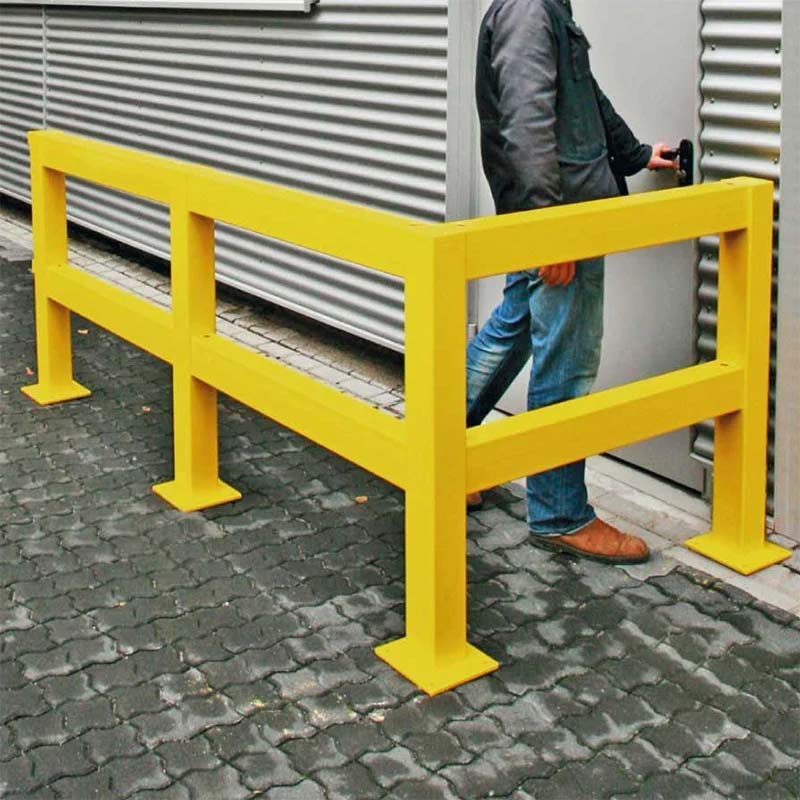

Heavy duty triple-ridge barriers designed to segregate traffic lanes from pedestrians

Ideal for preventing damage to work areas, machinery, equipment and buildings, each heavy duty impact protection rail is strong and durable. Perfect for use as a health and safety measure, these railings are designed to segregate pedestrians from traffic lanes, such as those used by forklift trucks and foot traffic walkways. Finished in a high visibility yellow colour there is little chance of them being ignored.

Designed as a modular system, the railings are quick and easy to install and can be customised to any length required. Should sections become damaged as a result of vehicle impact or similar, they can be easily replaced thanks to the countersunk fixing bolts, which secure the rails to the posts. The railings can also be extended and modified, even after their initial installation. Thanks to their modular design they are readily customisable to suit a specific location, with any damaged sections easily replaced.

Manufactured in Germany using structural steel to combine quality with strength, these railings will provide many years of service.

End, centre and corner posts are available in two heights, 500mm and 1000mm. Barrier rails are sold in four different sizes, 1,000mm, 1,200mm, 1,500mm and 2,000mm. It should be noted that some assembly is required.
