Vertical Bike Storage Racks

from £339.10 each (ex. VAT) with free delivery

FREE Shipping on this product
Vertical Bike Storage Racks

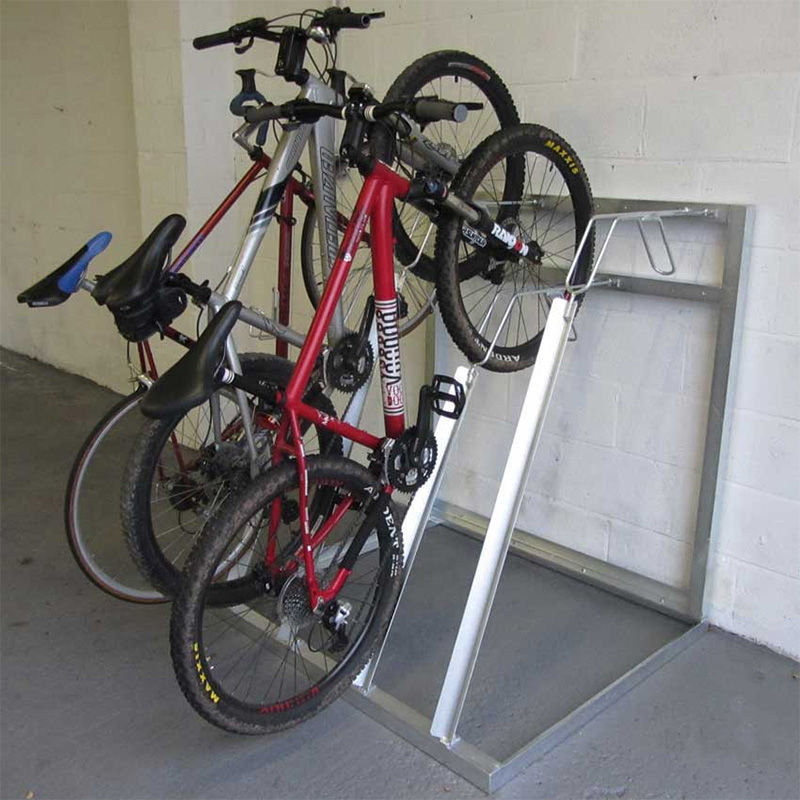

4 Bike Vertical Storage Rack In Use Close Up

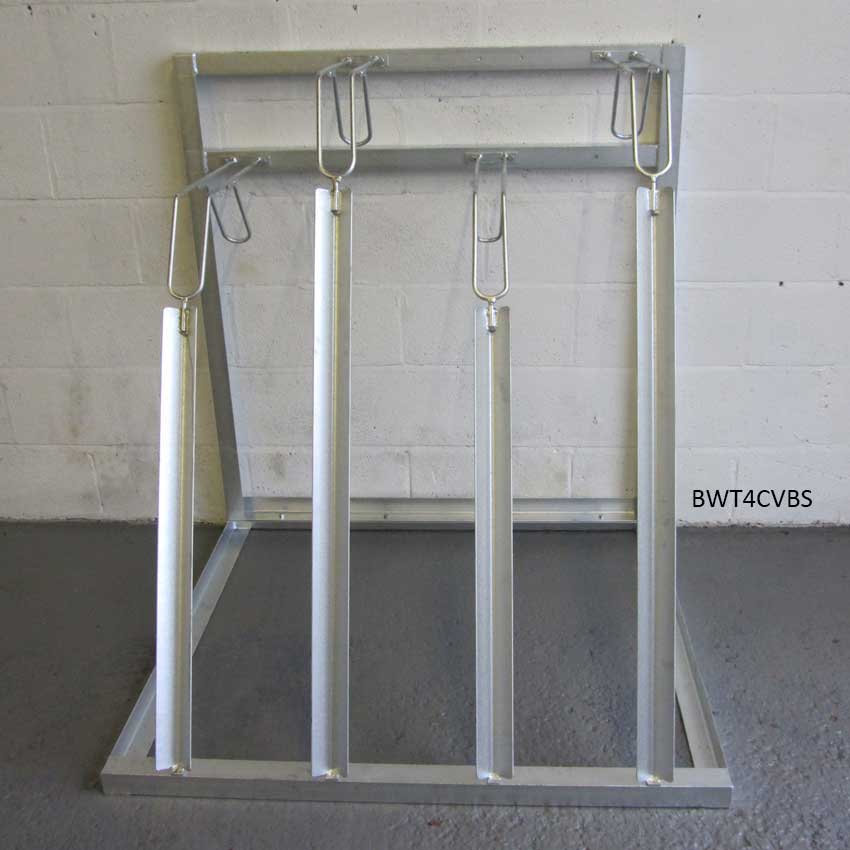

Vertical Storage Rack - Front View For 4 Bikes
Supplied in kit form Supplied
in kit form
1 year

Key Features

A chance to WIN a Simplehuman bin with orders over £199 entry code SIMPLE
  • Vertical bicycle storage racks for 4 or 6 bikes
  • Accepts tyre widths up to 70mm
  • Steel angle iron construction with 10mm steel wire
  • Galvanised finish provides additional protection against the elements and corrosion
  • Front tyre fits between steel wire tubes to hold the bike in place
  • Suitable for mountain bike tyres
  • Both units are 1200mm high and 1070mm deep with 300mm centres
  • Suitable for bolting down onto tarmac or concrete
  • Supplied with 4 pre-drilled floor fixing holes
  • Multiple racks can be joined together to create longer runs
  • Supplied flat packed for easy onsite assembly
15-20 working days Delivery info
Call us on 0808-223-0187 for further discounts on large orders
CodeBike Capacity Dimensions
H x W x D (mm)
(Ex. VAT)
BWT4CVBS4 1200 x 1400 x 107044
1 £356.95
2-5 £348.03
6+ £339.10
BWT6CVBS6 1200 x 2000 x 107066
1 £536.90
2-5 £523.48
6+ £510.05
15-20 working days Delivery info

Product description

Vertical Bicycle Storage Racks With 4 or 6 Bike Capacity.

In recent years, cycling has become a more popular pastime resulting in more people cycling to work, the shops and other locations. Thanks to this cycling boom, businesses, schools and other organisations have needed to install new cycle racks or expand their existing facilities. Where space is limited or valuable vertical bike storage racks are a popular solution.

Our vertical bike storage racks are capable of storing either 4 or 6 bikes, their unique design ensures that any bicycles stored on these bike racks take up less space than they would with more traditional cycle racks. Both of our vertical cycle racks are constructed from steel angle iron and 10mm steel wire, this robust foundation is then galvanised to increase the lifespan by providing superior weather protection against the build up of corrosion.

When each bike is stored the cyclist simply has to push their front tyre up the channel until the front tyre falls between the two steel wire tubes, as the front tyre rests behind the channel it secures the bike in place allowing the cyclist to attach their own lock for peace of mind.

These vertical bike racks should be fixed to a tarmac or preferably concrete surface and are supplied with 4 pre-drilled fixing holes. When delivered, these bike racks will be flat packed but the assembly is incredibly easy.

Customer Experience Feedback

5 star5 star5 star5 star5 starExcellent Purchasing Experience
Excellent service item ordered and delivered in a timely fashion.

Product Reviews

5 star
4 star
3 star
2 star
1 star
08-Sep-2020 - Andrew S Morley -

BWT6CVBS - Good strong construction and easy to assemble

Delivery & Returns

Delivery InformationDelivery Charges

Free UK mainland delivery on orders over £45 ex.VAT.

Orders under £45 ex.VAT - £4.50 delivery charge.

Postcode exceptions: HS, KW, ZE, IV, AB, DD, PH, PA, GY, JE, IM, BT, Isle of Anglesey, Isle of Wight and Eire.

Standard deliveries are Monday to Friday 8.30am to 5.30pm to the GROUND FLOOR or KERBSIDE only (unless previously agreed in writing).
We are unable to confirm exact delivery times, but we can usually confirm a day if you let us know in advance.

Saturday deliveries, timed AM or PM or above ground floor deliveries are available at extra cost.
Oversized products requiring a crane or hiab offload may incur an additional charge.
Contact us for more information.

Estimated Delivery Times

Lead times are displayed in working days, which excludes weekends & bank holidays.
During these unprecedented times, occasionally we are experiencing unexpected delays. If you have not received your item within the lead time shown please contact us and we will look into it as a matter of urgency.
Stock levels change daily, if you have a specific delivery requirement please contact us and we will do our best to help.

At the time of delivery

An authorised person must be present to sign for delivery.
Failed attempts may result in a return delivery charge.
A request to leave goods without signature is entirely at your own risk.

Please check your delivered goods carefully.
ESE Direct cannot accept claims for shortage or damage after goods have been signed for.
The only exception is proof of a carrier note that is marked as damaged.
We must also be notified in writing within 24 hours of the delivery.
Please do not sign for any goods as 'unexamined' or 'unchecked' as carriers will not accept liability for any subsequent damage.

Problems with Deliveries

Nobody is perfect, unfortunately damages & mistakes happen.
In this case, please email [email protected] as soon you receive your item (including a photo would really help speed things up).
Or call Customer Services on 01603 598779 and we will deal with you as a priority.


As part of our commitment to the environment, much of the packaging we use can be recycled.

Customer Questions

Anonymous User - 07 Sep 2018

Q. What tyre width can the rack accept. 50-60mm seems to be the norm? Can you manufacture a rack to accommodate a 66mm tyre, as mountain bike tyres aren't getting any thinner?

A. These accept tyres up to 70mm

Kate - 14 Aug 2015

Q. Would full mudguards be distorted by the rack at the front wheel or on the floor. Please can you post photos with full mudguards for commuter bike customers like me. Also, is it possible to use the rack without bolting it down at all?

A. You could use the rack without bolting it down, and full mudguards would not be affected.
