Single Door Lithium-Ion Battery Cabinets
Buy Now- Manufactured from twin walled 1-1.5mm thick cold pressed steel with layer of high-density ceramic fibre free insulation rated to 800°c
- Anti-acid epoxy powder paint finish
- Large cabinet external dimensions 1950 x 595 x 600mm (H x W x D)
- Large cabinet internal dimensions 1540 x 496 x 446mm (H x W x D)

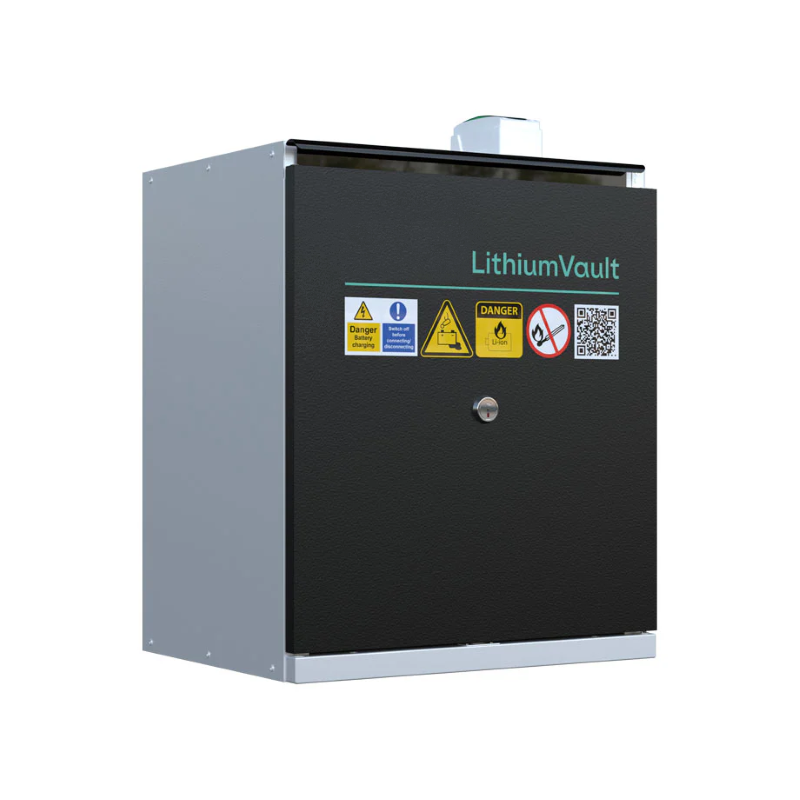

- Small cabinet external dimensions 720 x 595 x 520mm (H x W x D)
- Small cabinet internal dimensions 593 x 483 x 349mm (H x W x D)
- Clearly labelled identifying potential hazards, meeting COSHH guidelines
- Doors close and lock automatically (hydraulic closing system) at 47°c to contain fire, sealed by 3cm thermo-expanding seal (DIN 4102)
- 100mm diameter air inlets and outlet pipe valves close automatically to seal the cabinet at 70°c
- Key-operated door lock (2 keys supplied)
- Adjustable feet to ensure level installation on uneven floors
- Anti-spark hinges and earthing terminal help prevent accidental ignition
- 2 small grids for passive ventilation
- Optional 3 amp control panel features; fire detection and FirePro automatic extinguishing, alarm, 128 x 64 pixel graphic supply, LPCD certified to EN 12094-1 and EN54.2 & 4
- Optional charging power sockets for safe charging of lithium-ion batteries
- Model CH-L1Q1PGB features quarantine suppression, in the event of fire, batteries are automatically released into the integrated water tank
- All cabinets certified to 90 minute fire resistance in event of an internal or external fire EN 14470-1 TYPE 90
Code | Control Panel with Alarm, Sensor & Firepro Suppression |
No of Charging Sockets |
No of Perforated Shelves |
Quarantine Water Tank with Water Pump |
Weight (kg) |
Price ex. VAT |
|||
---|---|---|---|---|---|---|---|---|---|
CH-L6PGB |
| No | 6 | 1 | No | 89 |
|
|
|
CH-L1B |
| No | None | 4 | No | 210 |
|
|
|
CH-L1Q1PGB |
| No | 3 x 6 | 3 | Yes | 223 |
|
|
|
CH-L1F2GB |
| Yes | None | 4 | No | 215 |
|
|
|
CH-L1F2PGB |
| Yes | 4 x 6 | 4 | No | 223 |
|
|
We seemingly live in a world powered by Lithium-Ion batteries, from tiny cell batteries for key fobs and watches to the worlds' biggest battery, created by Tesla, which is the size of football field, without them, maybe everything would stop.
Lithium is is an alkali metal and is a member of the same family as sodium, potassium, rubidium, caesium and francium and like all alkali metals is highly reactive and flammable and for this reason Lithium-Ion batteries need careful storage. Fires involving Lithium-Ion batteries are the fastest growing fire risk in London, if damaged or charged incorrectly they can generate and release an incredibly amount of heat energy known as 'thermal runaway' that can cause fires or explosions. As Lithium-Ion battery fires generate their own oxygen they can be very difficult to extinguish, so prevention is obviously better than cure, therefore, storage of batteries in fire proof cabinets is essential and in the event of batteries actually catching on fire they need to be starved of oxygen and cooled and as Lithium-Ion batteries which have gone into "thermal runaway" can re-ignite up to 10 hours after being extinguished they should be kept starved of oxygen for at least 12 hours after the fire.
The range of 1-door Lithium-Ion battery storage cabinets from ESE Direct Ltd provides safe storage for batteries with the option of charging points and control panels and also a quarantine model which in the event of an internal fire will automatically drop batteries into an integrated water tank, where they will be both cooled and deprived of oxygen. The batteries should be then left in the water tank for at least 12 hours.
