Double Vertical Scissor Lifts 200kg to 3000kg capacity
-
Your shopping cart is currently empty.
Double Vertical Scissor Lifts 200kg to 3000kg capacity
- Provides greater lift height without increasing the platform size, but must be securely bolted to the ground to maintain safety
- If using for goods between working floors we recommend either handrails or mesh partitions are fitted around perimeter to prevent items falling
- Easy push-button controls with emergency stop in low voltage 24v supply to improve electrical safety unlike some other manufacturers
- Double Scissor tables have 3 phase 3amp power supply as standard (single phase option available for most models) with automatic overload protection housed in IP54 rated fully enclosed casing
- Safety trip bars under the platform lock the table if descent is obstructed
- Fail safe automatic pressure relief and hose safety valves lower table slowly in the event of hydraulic failure

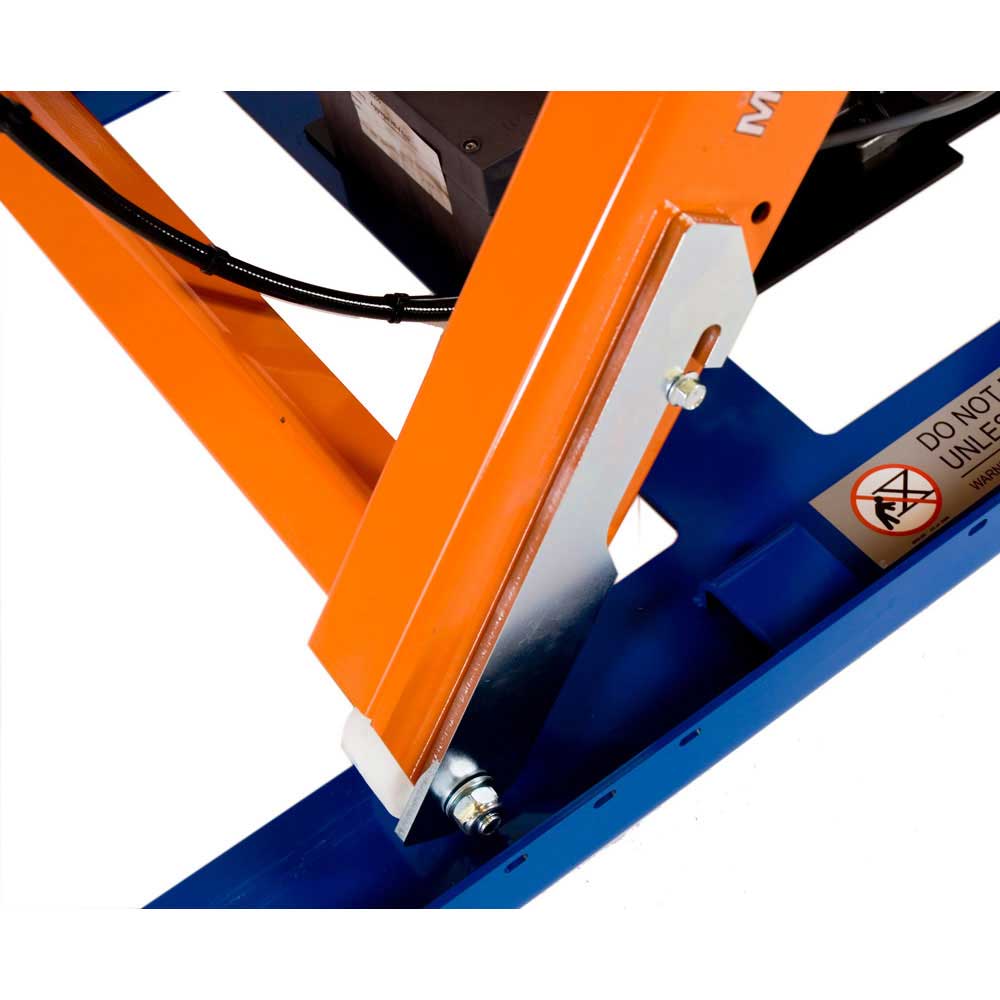

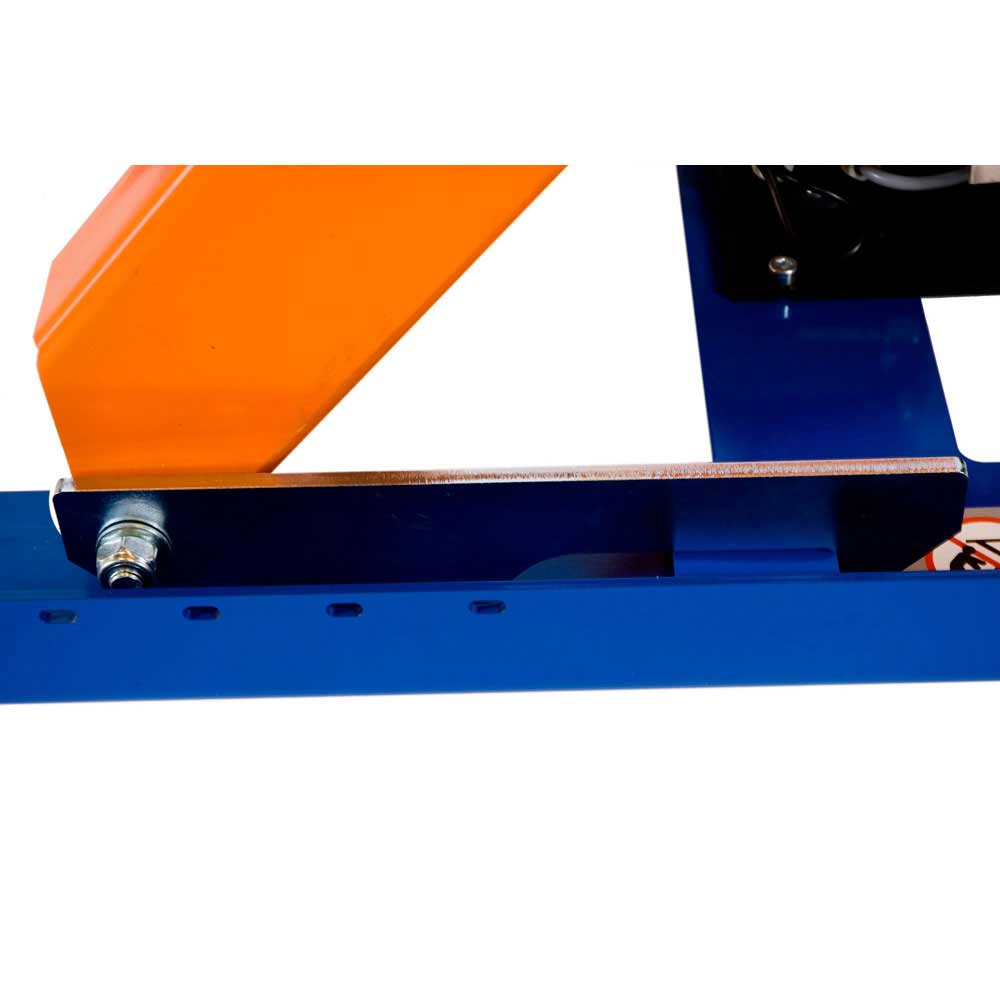

- Mechanical stays to lock scissors in place for safe maintenance access
- Manufactured to exceed EN1570/1999 European Standard and CE marked
- TMD3000 model has remote power pack, without cover
| Code | Capacity (kg) |
Folded (mm) |
Stroke (mm) |
Platform Size L x W (mm) |
Rise Time (seconds) |
Weight (kg) |
Price ex. VAT |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRD200 | 200 | 280 | 1170 | 900x600 | 12 | 125 |
|
|
||||||||||
| TRD500 | 500 | 280 | 1170 | 900x700 | 25 | 185 |
|
|
||||||||||
| TLD1000 | 1000 | 320 | 1600 | 1300x800 | 29 | 230 |
|
|
||||||||||
| TSD1500 | 1500 | 450 | 3000 | 2200x1200 | 55 | 720 |
|
|
||||||||||
| TLD2000 | 2000 | 360 | 1600 | 1300x800 | 34 | 325 |
|
|
||||||||||
| TMD3000 | 3000 | 500 | 2200 | 1700x900 | 50 | 580 |
|
|
Double Vertical Scissor Lift Platforms are ideal for use in a loading bay or as a lifting table between different floors because of the high stroke heights available (from 1.17m to 3m)
The Double Vertical Scissor Lift Platform is mainly intended for use on loading bays at warehouses that have goods or materials placed on different floors or platforms. The platform has a long vertical reach and can, for example, easily offload goods or materials from floors and load them onto trucks. The platform complies with strict international standards and is easy and safe to operate. The platform is protected from hydraulic failures and electrical overloads. It is available in a range of models, with various lifting capacities and speeds. if a double scissor lift table is a bit too big for you, single scissor lift tables are also an option.
While operating the platform, it is essential to follow all instructions to ensure safety and stability.
