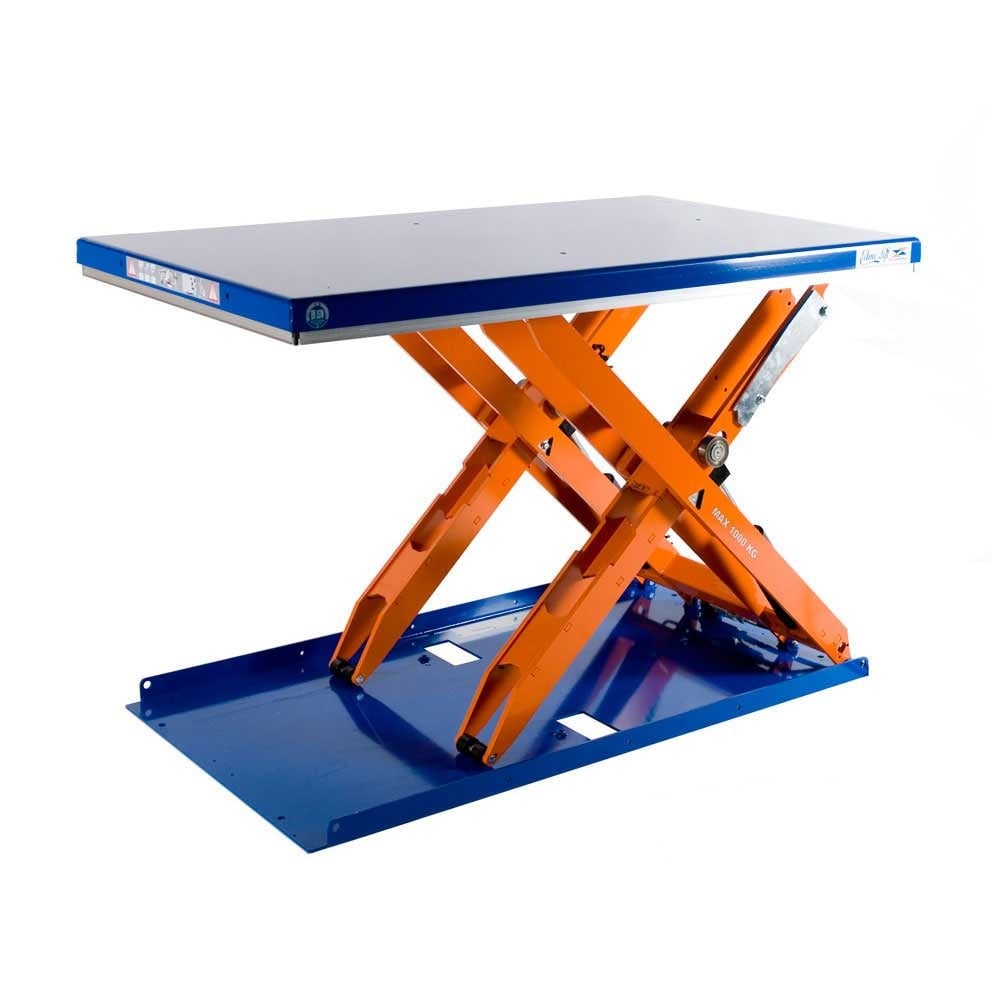

Low Profile Scissor Lifts 500kg to 2000kg capacity
Buy Now- 500kg to 2000kg low profile scissor lift tables
- 80mm to 100mm closed height
- Platform dimensions from 900mm x 600mm to 1,350mm x 1,270mm, depending on the model
- 9 to 24 second (depending on the model) quick lift time with easy push-button controls and emergency stop in low voltage 24v supply to improve electrical safety unlike some other manufacturers
- Low Profile Tables have 3 phase 3amp power supply as standard (single phase option available most models, pricing on application) with automatic overload protection housed in IP54 rated fully enclosed casing
- Safety trip bars under the platform lock the table if its descent is obstructed

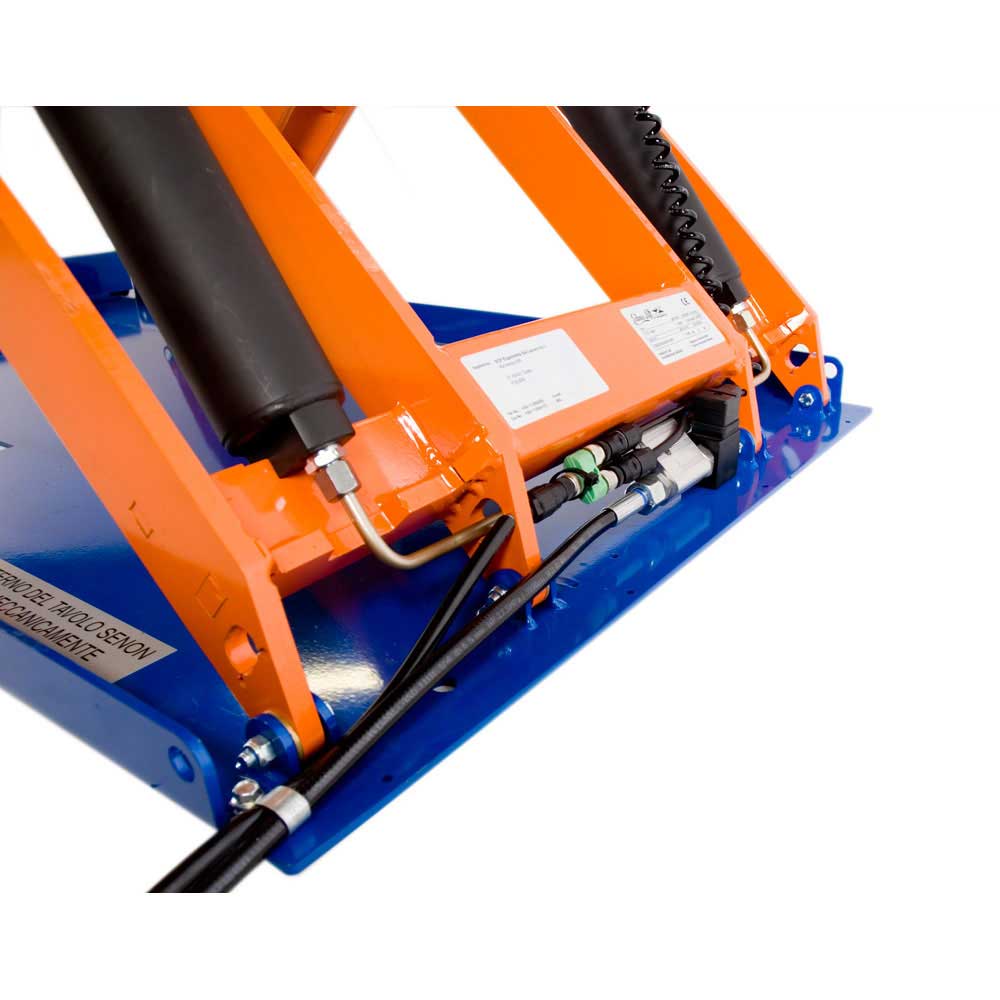

- Fail safe automatic pressure relief safety valves to lower table slowly in the event of a hydraulic failure

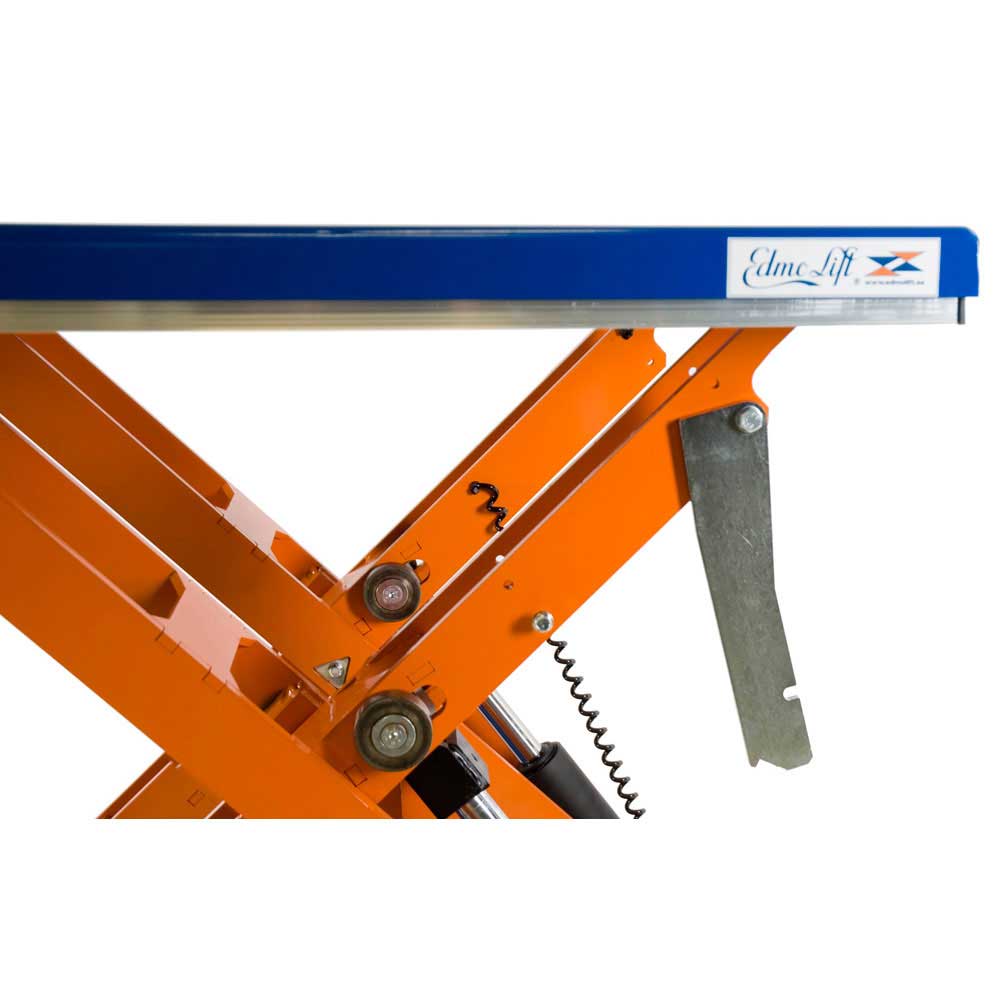

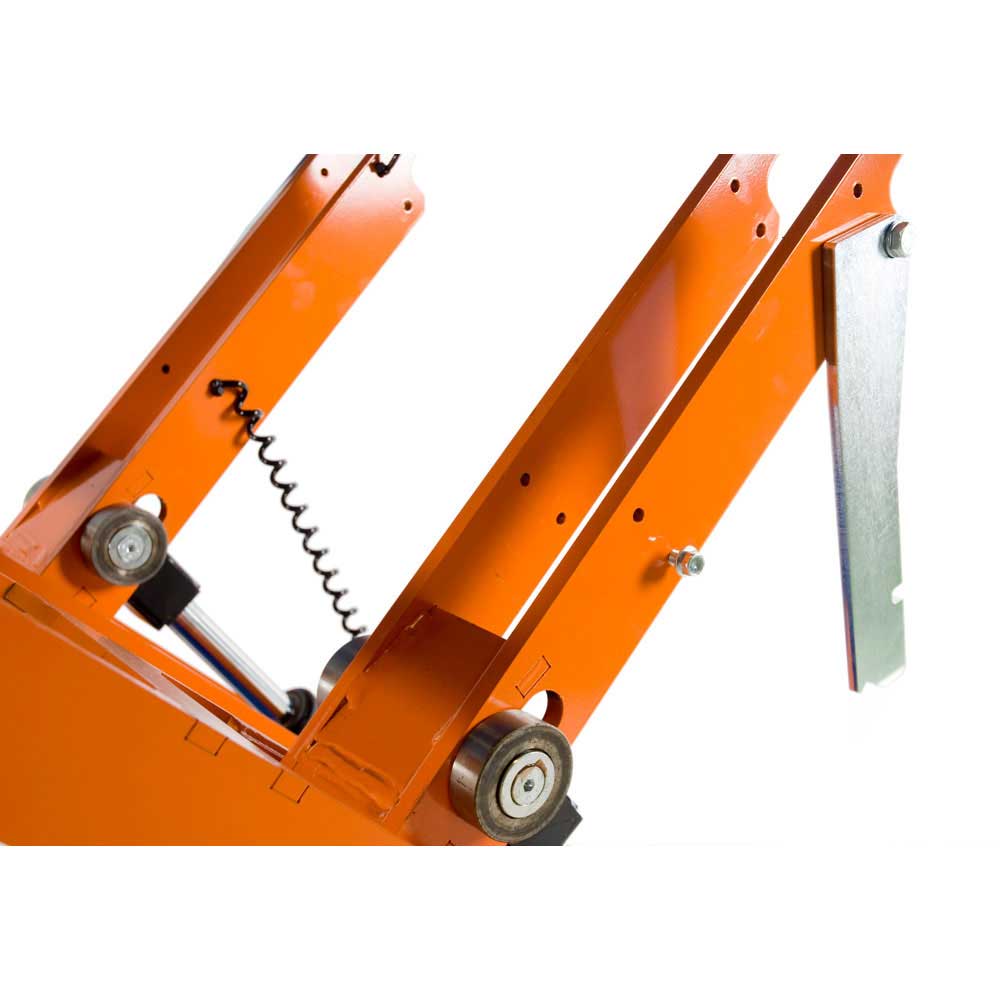

- Mechanical stays to lock scissors in place for safe maintenance access
- Manufactured to exceed EN1570/1999 European Standard and CE marked
- TCB600H must be securely fixed to the ground to maintain stability
- Compatible low profile scissor lift ramp available to enable easy loading from pallet trucks
- Designed and manufactured in accordance with the requirements of the Lift Table Standard, EN 1570-1
Code | Capacity (kg) |
Folded height (mm) |
Stroke / Height (mm) |
Platform L x W (mm) |
Rise Time (seconds) |
Weight (kg) |
Price ex. VAT |
|||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TCR500 | 500 | 80 | 630 | 900 x 600 | 9 | 138 |
|
|
||||||||||
TCB600 | 600 | 80 | 720 | 1500 x 900 | 13 | 210 |
|
|
||||||||||
TCB600H | 600 | 80 | 970 | 1500 x 900 | 19 | 210 |
|
|
||||||||||
TCL1000 | 1000 | 80 | 820 | 1350 x 800 | 13 | 250 |
|
|
||||||||||
TCL1000B | 1000 | 80 | 820 | 1350 x 1000 | 13 | 275 |
|
|
||||||||||
TCL1000GB | 1000 | 80 | 820 | 1350 x 1270 | 13 | 300 |
|
|
||||||||||
TCL2000 | 2000 | 100 | 820 | 1350 x 800 | 24 | 325 |
|
|
||||||||||
TCL2000B | 2000 | 100 | 820 | 1350 x 800 | 24 | 355 |
|
|
Patented low profile scissor lift mechanism allows a very low closed height, eliminating the need for a pit
These low profile scissor lift tables are especially useful for lifting objects or people onto relatively low platforms or loading bays. When lifting is being carried out it is essential to secure the machine to the ground and provide rails to ensure safety and stability. The lift meets the strictest international standards and is easy and safe to operate and maintain. It features protection from unforeseen problems such as electrical overload, hydraulic failures and low voltage. The lift is available in a range of models, each of which has individual specifications, such as lifting capacity, platform dimensions and elevation levels per stroke, based on unique industrial requirements.
Note that it is essential to securely fix the TCB600H model to the ground while it is being operated.
Lift table service and safety
Declaration of Conformity or Incorporation
Our Lift Tables are designed and manufactured in accordance with the requirements of the Lift Table Standard, EN 1570-1 and thus the demands of the Machinery, Low voltage and EMC-Directives are complied with. All products carry the CE-mark and include a CE Declaration of Conformity or, in certain cases, a Declaration of incorporation is included. Below follows an overview of the standard.
The EN 1570-1 lift table Standard
The EN 1570-1 Lift Table Standard specifies the safety requirements for lift tables used for lifting and/or lowering of materials and/or persons who travel with the table for handling of transported material. It is valid as long as the lift table does not pass a fixed landing or where the lift table does not serve more than 2 fixed landings. Included in the standard are all of the following points:
- Rules for loading conditions, strength and stability calculations.
- Safety arrangement requirements if persons, wheel borne goods etc. travel on the lift table.
- Minimum safety clearances in the construction, with or without safety frame.
- Protection devices for various applications to prevent persons, goods or fixed installations in the lift table work area from being damaged.
- Maximum permitted lifting, lowering and peripheral speeds.
- Overload protection.
- Devices to prevent the lift table lowering at speed in the event of a hose break and to prevent risks caused by unintentional lowering due to oil leaks, stop lowering at hose break and prevent risks caused by unintentional lowering due to leakage. this range with a new standard hydraulic and electrical systems meet all these requirements, which is uncommon for the systems of other lift table manufacturers.
- Demands on the type of control system, such as the inclusion of an Emergency Stop device and the facility to prevent unauthorized use.
- Testing of all products prior to delivery
- Comprehensive operation and maintenance instructions and markings, to give clear advice about the operation, warnings regarding possible misuse and risks, of the lift table and any that could occur in the vicinity of the lift table. Also to provide instructions for installation, inspections and maintenance, providing the user with extended, economical use for these lift tables.
