2700mm Wide Pallet Racking Bays

from £567.54 each (ex. VAT) with free delivery

FREE Shipping on this product
2700mm Wide Pallet Racking Bays
Supplied in kit form Supplied
in kit form
1 year
guarantee
Country of origin: UK made in
the UK
Made to
Order

Non
returnable

Key Features

  • 2700mm wide beams are suitable for pallet widths of up to 2 x 1200mm wide per level leaving 100mm clearance each side of pallets to make loading / unloading with a forklift easier
  • Pallet racking beams are adjustable on a 75mm pitch to suit varying loaded pallet heights
  • Easily assembled and installed, supplied complete with; floor fixings, levelling shims and beam locking pins
  • 900mm deep frame bays are suitable for storing 1000mm deep pallets of up to 1,000kg each (2 per level)
  • 1100mm deep frame bays are suitable for storing 1200mm deep pallets of up to 1,000kg each (2 per level)
  • Extension bays are supplied with one frame only and need to be attached to an upright of an existing starter bay
  • The uprights are finished in a durable graphite grey and the beams in a highly visible orange
  • Coil cradles, Fork Spacers, Drum chocks, Row spacers available
  • 2250mm wide bays are also available
  • View labels and weight restriction notices for racking
  • Learn More about anti-collapse and racking inspections >
  • Keep your health & safety officer happy and view our racking safety tag kits

Guide to warehouse labelling

20-25 working days Delivery info
CodeHeight (mm) Depth (mm) Beam Levels Pallets Stored* Bay Type Weight
(kg)
Price
(Ex. VAT)
Order
PS27930300090026Starter170
1-5 £630.60
6-14 £599.07
15+ £567.54
PS2711303000110026Starter170
1-5 £641.00
6-14 £608.95
15+ £576.90
PS27948480090038Starter170
1-5 £930.55
6-14 £884.02
15+ £837.49
PS2711484800110038Starter170
1-5 £944.95
6-14 £897.70
15+ £850.45
PS279606000900410Starter170
1-5 £1182.40
6-14 £1123.28
15+ £1064.16
PS27116060001100410Starter170
1-5 £1199.50
6-14 £1139.52
15+ £1079.55
PE27930300090026Extension145
1-5 £473.70
6-14 £450.01
15+ £426.33
PE2711303000110026Extension145
1-5 £478.90
6-14 £454.95
15+ £431.01
PE27948480090038Extension145
1-5 £701.40
6-14 £666.33
15+ £631.26
PE2711484800110038Extension145
1-5 £708.55
6-14 £673.12
15+ £637.69
PE279606000900410Extension145
1-5 £905.05
6-14 £859.80
15+ £814.54
PE27116060001100410Extension145
1-5 £913.55
6-14 £867.87
15+ £822.19
20-25 working days Delivery info

Product description

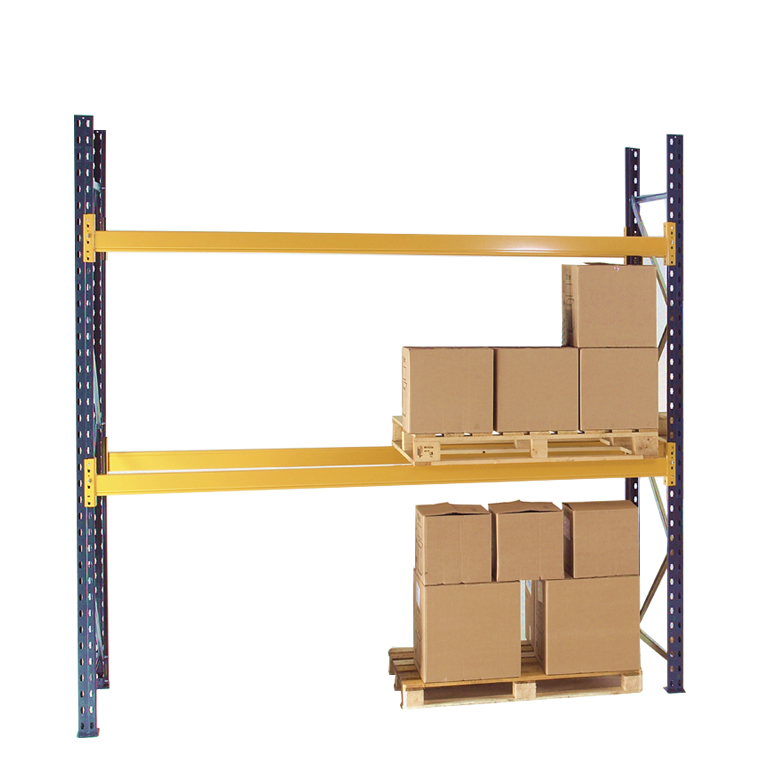

2700mm wide bays of pallet racking

Efficient use of floorspace is essential for maximum economy in a warehouse or workshop as sufficient space must be available for the safe manoeuvrability of fork-lift trucks, and storage of pallets must allow easy access. Both galvanised metal and timber decking can be used for shelf storage when pallets are not being used.

This range of six starter kits and six extension kits with a maximum height of 6000mm gives a pallet stacking capacity of ten pallets per kit, using the floor as the first level, and the large range of sizes allows flexibility in planning your floor layout. All installation fittings are included in the starter kits.The extension kits have 1 frame and the other end of the shelf beams locate into uprights of the starter bay frame.

Racking beam heights are adjustable. The 900 mm deep bays can accept two pallets of 1200 mm wide x 1000 mm deep with 100 mm clearance at the side of each pallet, and the maximum weight of each pallet should not exceed 1000kg, giving a bay capacity of up to 2000 kg. The 1100 mm deep bays can accept two pallets 1200mm wide x 1200mm deep also with a maximum load capacity of 2000 kg, giving 100mm clearance at the side of each pallet. The uprights are finished in a durable graphite grey and the beams in a highly visible orange yellow (RAL 2000).

Matching pallet racking bays 2250mm wide are also available.

Installation Advice For Pallet Racking Bays Download Installation Advice.

* Number of pallets stored calculated by also using the floor as the first level
