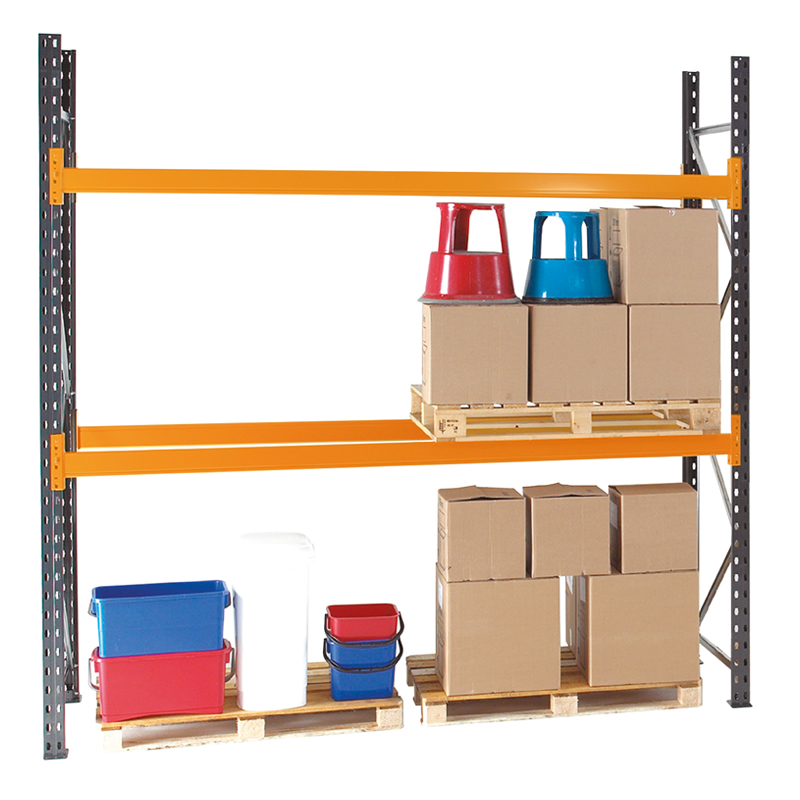

2250mm wide Pallet Racking Bays

from £492.25 each (ex. VAT) with free delivery

FREE Shipping on this product
2250mm Wide Pallet Racking Bays
Supplied in kit form Supplied
in kit form
1 year
Country of origin: UK made in
the UK
Made to


Key Features

  • 2250mm wide beams are suitable for pallet widths of up to 2 x 1000mm wide per level leaving 75mm clearance each side of pallets to make loading / unloading with a forklift easier
  • Pallet racking beams are adjustable on a 75mm pitch to suit varying loades pallet heights
  • Easy to install; floor fixings, levelling shims and beam locking pins are all included in each bay price
  • 900mm deep frame bays are suitable for storing 1000mm deep pallets of up to 1,000kg each (2 per level)
  • 1100mm deep frame bays are suitable for storing 1200mm deep pallets of up to 1,000kg each (2 per level)
  • Extension bays are supplied with one frame only and need to be attached to an upright of an existing starter bay
  • The uprights are finished in a durable graphite grey and the beams in a highly visible orange
  • Coil cradles, Fork Spacers, Drum chocks, Row spacers available
  • 2700 wide bays also available
  • View labels and weight restriction notices for racking
  • Learn More about anti-collapse and racking inspections >
  • Please note this product is made to order and therefore cannot be returned, please check all measurements carefully
  • Keep your health & safety officer happy and view our racking safety tag kits

Guide to warehouse labelling

20-25 working days Delivery info
CodeHeight (mm) Depth (mm) Beam Levels Pallets Stored* Bay Type Weight
(Ex. VAT)
1-5 £546.95
6-14 £519.60
15+ £492.25
1-5 £557.30
6-14 £529.43
15+ £501.57
1-5 £805.00
6-14 £764.75
15+ £724.50
1-5 £819.40
6-14 £778.43
15+ £737.46
1-5 £1015.05
6-14 £964.30
15+ £913.54
1-5 £1032.20
6-14 £980.59
15+ £928.98
1-5 £390.00
6-14 £370.50
15+ £351.00
1-5 £395.20
6-14 £375.44
15+ £355.68
1-5 £575.90
6-14 £547.10
15+ £518.31
1-5 £583.05
6-14 £553.90
15+ £524.74
1-5 £737.70
6-14 £700.81
15+ £663.93
1-5 £746.25
6-14 £708.94
15+ £671.62
20-25 working days Delivery info

Product description

Adjustable pallet racking

This additional set of pallet racking bay kits allows greater flexibility of warehouse or workshop floor layout planning. The kits can be used in combination with other widths to maximise floor space and give maximum economy of investment. Clearance margins allow safe and practical use of fork-lift trucks.

This range consists of six starter kits and six extension kits up to a maximum height of 6000 mm giving a capacity of ten pallets per kit, including the floor space as the first level and the large range of sizes allows flexibility in planning your floor layout. Two fully assembled end frames, all installation fittings and floor bolts are included in the starter kits, while the extension kits comprise one fully assembled end frame, all installation fittings, floor bolts and the other end of the shelf beams locate into uprights of the starter bay frame. Full installation instructions are included.

Beam heights are adjustable to suit different pallet load heights. On the 1100 mm deep bays, two pallets 1000 mm wide x 1200 mm deep can be placed, leaving a clearance of 75 mm each side of the pallets. On the 900mm deep bays, two pallets 1000 mm wide x 1000 mm deep can be placed with the same clearance either side of the pallets. The maximum weight capacity for each bay is 2000 kg, so a maximum weight of 1000 kg per pallet would give uniformity of load distribution in each bay.

The uprights are finished in a durable graphite grey and the beams in a highly visible orange yellow (RAL 2000).

Installation Advice For Pallet Racking Bays Download Installation Advice

* Number of pallets stored calculated by also using the floor as the first level
