Light Duty Fixed Arm Cantilever Racks

from £1151.81 each (ex. VAT) with free delivery

FREE Shipping on this product
Cantilever Racking
Supplied in kit form Supplied
in kit form
3 year
Country of origin: UK made in
the UK
Made to


Key Features

A chance to WIN a Simplehuman bin with orders over £199 entry code SIMPLE

* Extension Bays increase length by 1225mm per bay, include a single upright and 3 support stays and can only be added to matching starter bays to make the bar rack longer (they will not stand up on their own)

15-20 working days Delivery info
Call us on 0808-223-0187 for further discounts on large orders
CodeDescription Bay Type Weight (kg) Dimensions
H x W x D (mm)
(Ex. VAT)

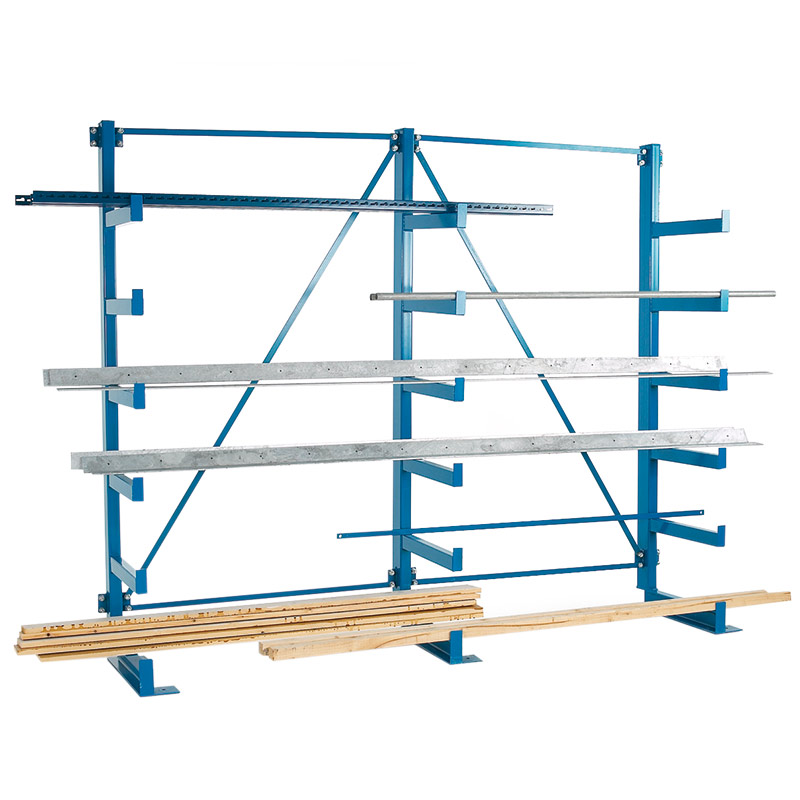

GCR110SINGLE SIDED - 2 BAY - 5 PARALLEL ARMS + BASEStarter106 / 382100 x 2580 x 610106
1-2 £1199.80
3-9 £1175.80
10+ £1151.81
GCR210DOUBLE SIDED - 2 BAY - 5 PARALLEL ARMS + BASEStarter143 / 512100 x 2580 x 1110143
1-2 £1496.70
3-9 £1466.77
10+ £1436.83

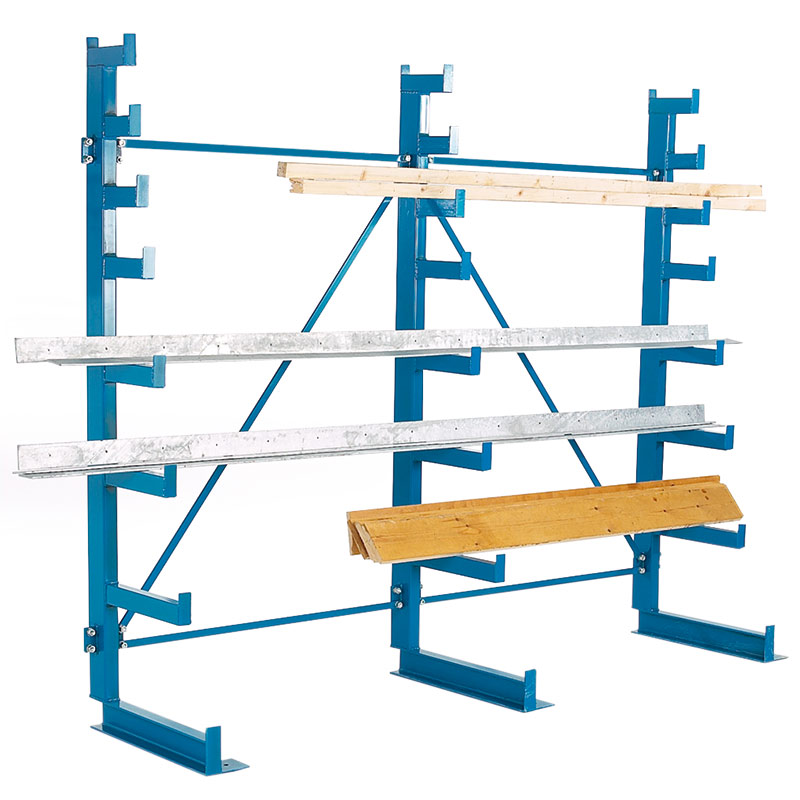

GCR120SINGLE SIDED - 2 BAY - 7 TAPERED ARMS + BASEStarter93 / 342030 x 2580 x 65093
1-2 £1305.45
3-9 £1279.34
10+ £1253.23
GCR220DOUBLE SIDED - 2 BAY - 7 TAPERED ARMS + BASEStarter125 / 442030 x 2580 x 1190125
1-2 £1396.10
3-9 £1368.18
10+ £1340.26
GCR111SINGLE SIDED - 1 BAY - 5 PARALLEL ARMS + BASEExtension106 / 382100 x 1225 x 61038
1-2 £543.30
3-9 £532.43
10+ £521.57
GCR211DOUBLE SIDED - 1 BAY - 5 PARALLEL ARMS + BASEExtension143 / 512100 x 1225 x 111051
1-2 £720.60
3-9 £706.19
10+ £691.78
GCR121SINGLE SIDED - 1 BAY - 7 TAPERED ARMS + BASEExtension93 / 342030 x 1225 x 65034
1-2 £612.80
3-9 £600.54
10+ £588.29
GCR221DOUBLE SIDED - 1 BAY - 7 TAPERED ARMS + BASEExtension125 / 442030 x 1225 x 119044
1-2 £718.75
3-9 £704.37
10+ £690.00
15-20 working days Delivery info

Product description

Ideal for the horizontal storage of steel, wood and pipes

Light duty single sided fixed arm cantilever racks are ideal for storing steel, wood, pipes and a wide range of other objects, while maintaining a high level of visibility in the workplace. Made in the UK from high-quality steel, these high quality steel racks can be supplied either single or double sided, depending on each customer’s specific storage needs. Loading and unloading the racks takes only seconds, as there are no closures that require setting the load down before placing it in the rack.

For even more functionality, the bar racks can be requested as either parallel (all the same length) or tapered (smaller arms at top), to accommodate a wide variety of items. For either style of arms, the clearance between arms is 270 mm. No matter the style, the arms have end stops to prevent items slipping from the rack. Each sturdy arm can hold up to 200 kg.

The entire rack can be secured to the floor via pre-drilled floor fixings. This is an outstanding feature for locations where heavy materials are stored alongside traffic thoroughfares for people. Keeping everyone safe and products secured can be easily handled by these fixed arm racks.

Extension bays are available to expand the length of the unit by 1225mm per bay. The extension bays are manufactured with one upright and three support stays for securing items. Choosing these light duty fixed arm cantilever racks is a logical choice for any business that wants easy access to supplies, but wants to keep things organised for stock control, shipping, employee use or sales. The diversity of the cantilever racks is what makes them such an attractive addition to any storage space. The units may also be mixed and matched with other racking systems to provide a comprehensive solution for storage in any workplace.
