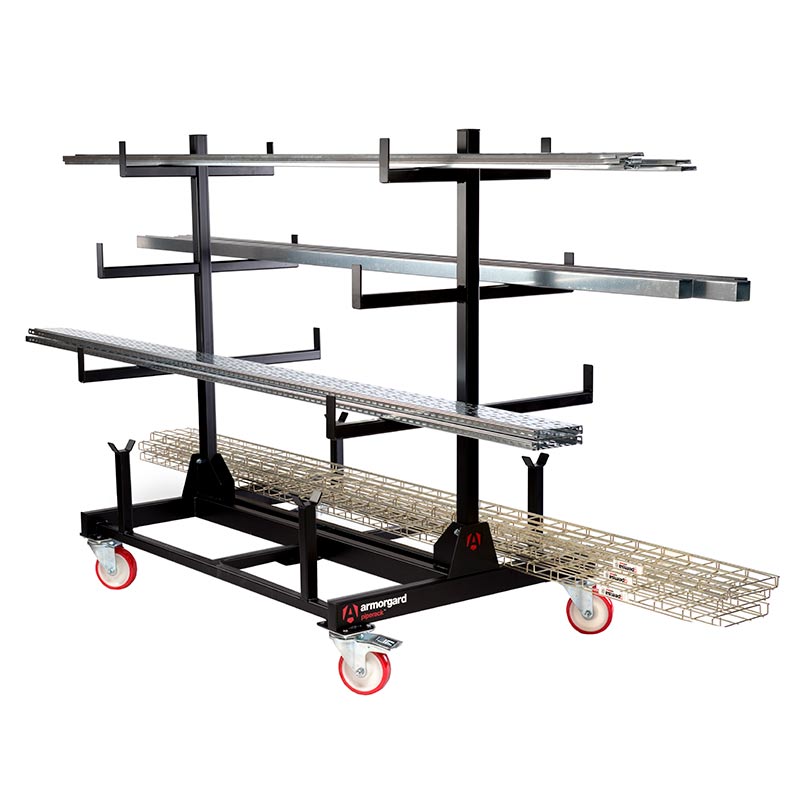

Armorgard PipeRack Mobile Pipe Storage Rack

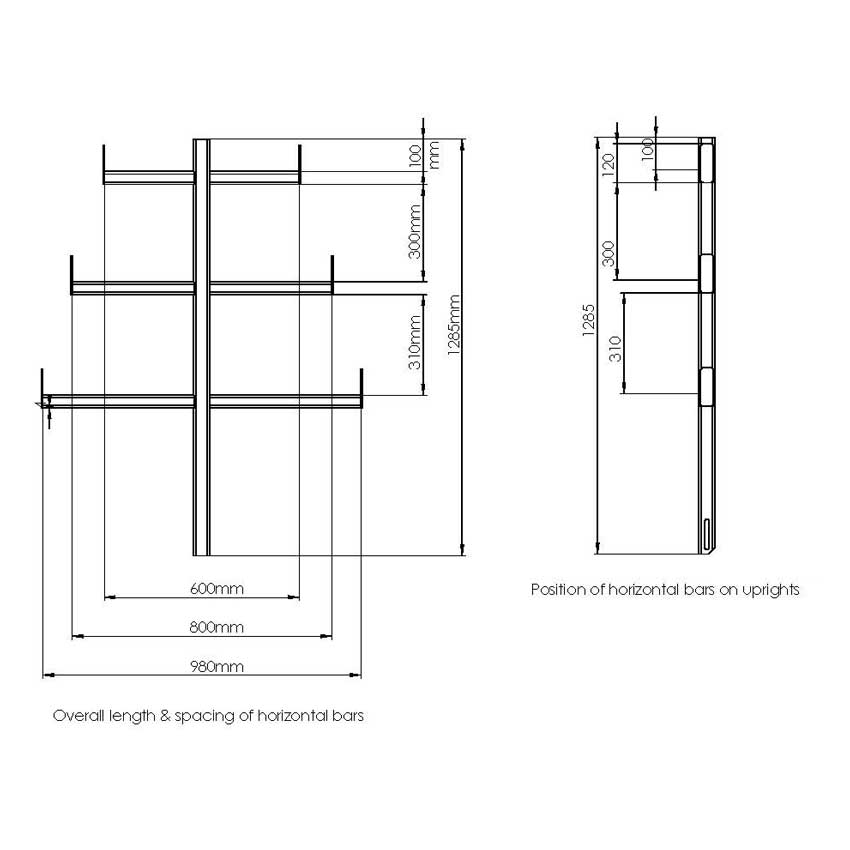

Diagram Showing Dimensions of Support Bars For PipeRack

1-3 working day delivery

made in
the UK

year
guarantee

Armorgard PipeRack Mobile Pipe Storage Rack

All steel heavy duty construction mobile PipeRack
Unique fully collapsible design also enables up to 6 units to be stacked on top of each other
Powder coated black finish for ultimate protection
Fitted with ultra-robust industrial all-swivel castors (2 braked)
Suitable for pipes, trays, conduit, timber, UPVC etc up to 3m in length
3 Support bars per upright - each supplied with different overall lengths:
- Bottom support bar: 980mm
- Middle support bar: 800mm
- Top support bar: 600mm
Fully tested and certified (test certificate available on request) so that the user can be assured that it's safe to use
Upgrade kit available to upgrade from 1 Tonne to 2 Tonne capacity
Linking kit available to join two Armorgard PipeRacks together for 6m lengths

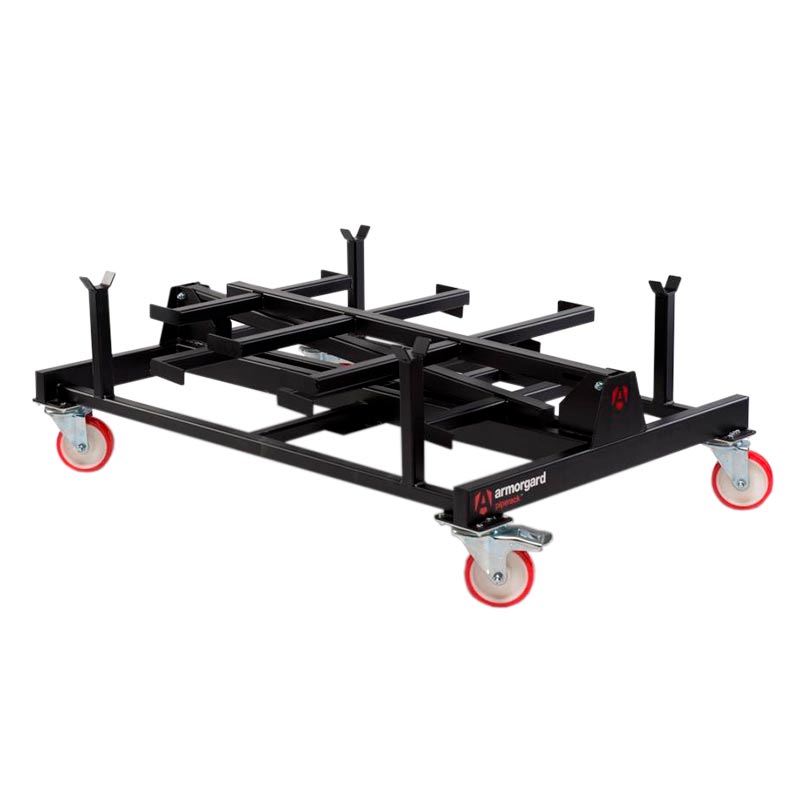

545mm high when collapsed
Each upright measures 50mm x 50mm & is 1285mm high
View labels and weight restriction notices for racking

Cantilever Racking

Code Description Overall Dimensions
H x W x D (mm) Capacity
(kg) Weight
(kg) Price
ex. VAT

PR1

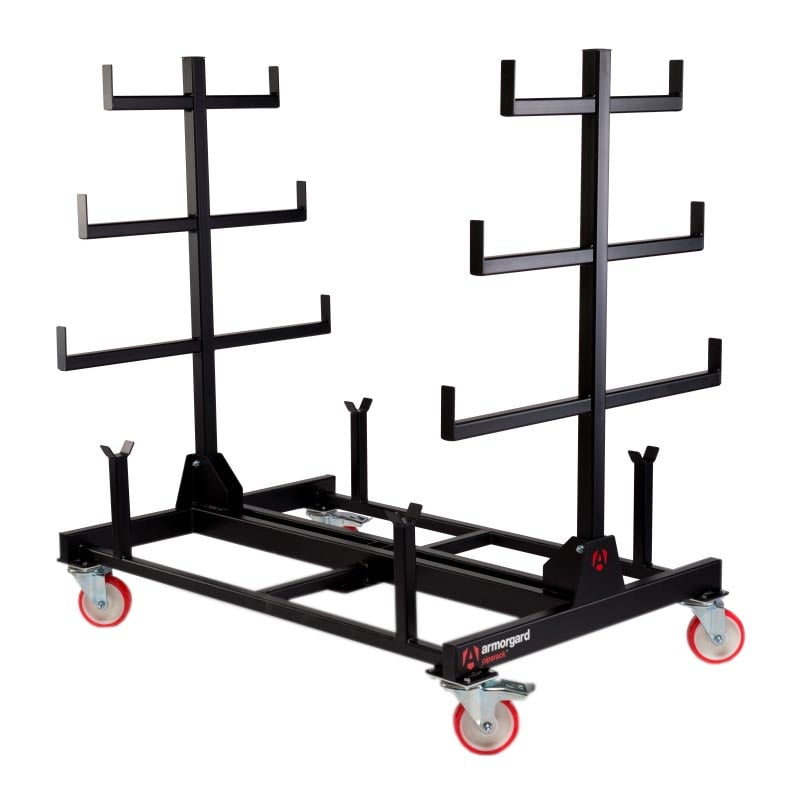

Armorgard PipeRack Mobile Pipe Storage Rack - certified 1 tonne storage capacity

1 Tonne PipeRack

1560 x 1500 x 1000

1000

1 - 4

£1,107.50

5 - 9

£1,052.13

10 +

£1,024.44

PR2

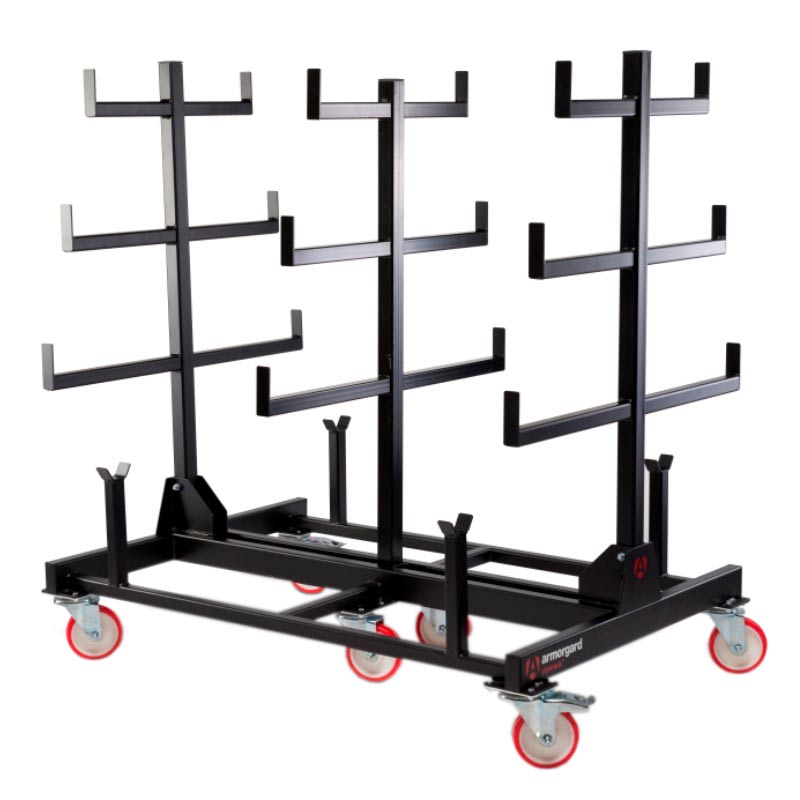

Armorgard PipeRack Mobile Pipe Storage Rack - 2 Tonne Capacity

2 Tonne PipeRack

1560 x 1500 x 1000

2000

101

1 - 4

£1,351.35

5 - 9

£1,283.78

10 +

£1,250.00

PRLK

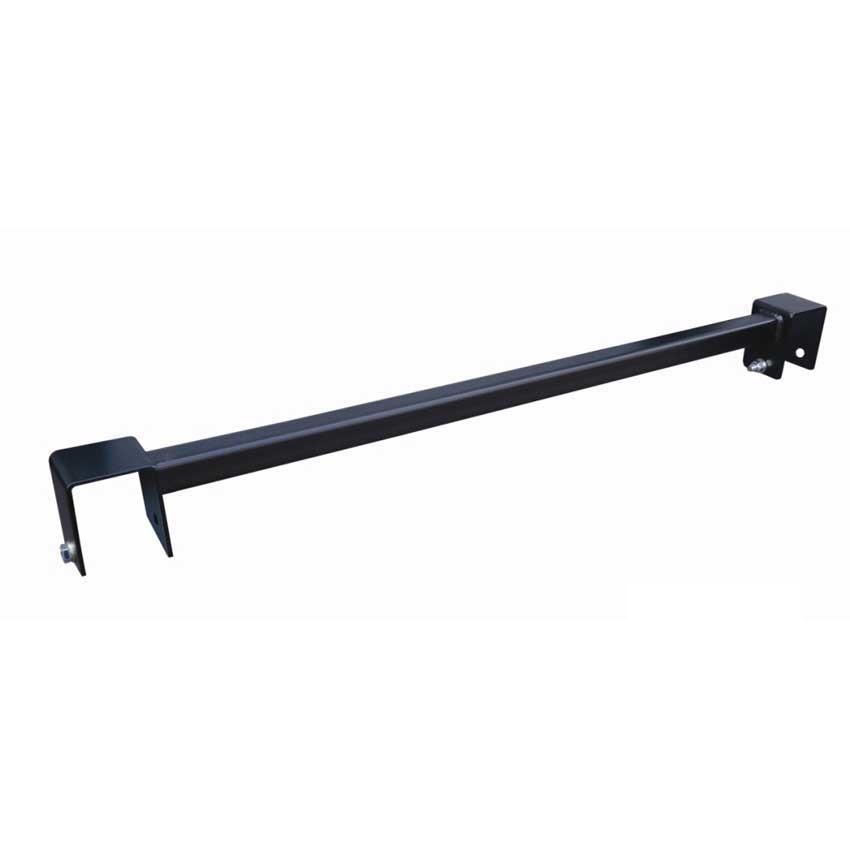

PipeRack Linking Kit

1 - 4

£210.85

5 - 9

£200.31

10 +

£195.04

PRUK

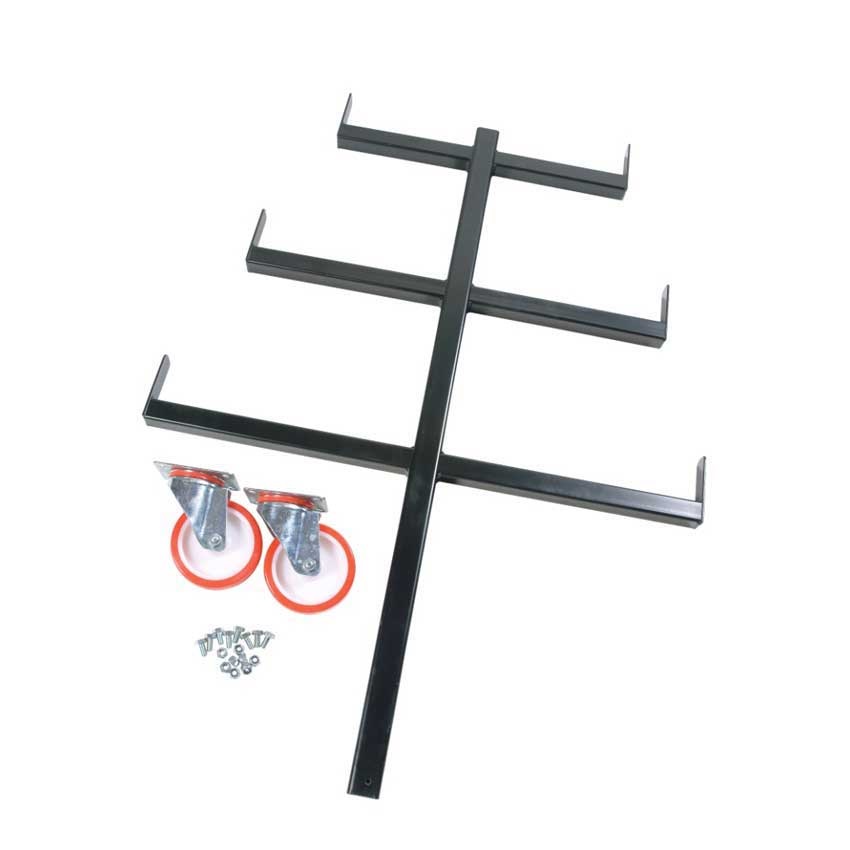

PipeRack Upgrade Kit from
1 Tonne to 2 Tonne

1 - 4

£421.70

5 - 9

£400.62

10 +

£390.07

PipeRack innovative mobile storage units with 1 tonne or 2 tonne capacity.

Finding the space to store long lengths of pipe, conduit, timber and other materials can be a difficult task, especially when businesses are looking maximise space available for valuable goods. With the Armorgard PipeRack mobile storage units you not only have a secure location to store these awkward materials but thanks to the ultra-robust industrial swivel castors you also have a mobile storage location, so should you need to relocate the material at any time you can do so without having to move the material between racks.

These fully certified storage units have been tested to guarantee you a top quality product and complete peace of mind. Both PipeRack models have an all steel heavy duty construction to which a black powder coated finish is applied. Thanks to the unique design the PipeRack units are fully collapsible, when folded both the PR1 and PR2 have an overall height of 545mm and for compact storage up to 6 of these units can be stacked.

The PR1 has a load capacity of 1 Tonne and the PR2 has a 2 Tonne capacity, upgrade kits which consist of an additional upright and two wheels are available to purchase at an additional cost, as are linking kits which enable users to join together two of the PipeRacks in order to store 6m lengths.

PipeRack Technical Drawing
