Manually Operated Counterweight Entry Barrier - Rising Support Post

from £1040.45 each (ex. VAT) with free delivery

FREE Shipping on this product
Counter-weight rising boom barriers with integrated resting post
Manually operated counterweight barrier with rising support post
Supplied in kit form Supplied
in kit form
1 year

Key Features

£25 of Costa vouchers with orders over £300
  • A parking barrier with rising support post
  • Available in a range of sizes to fit one or two lane routes
  • Can be used for car parks or security checks with manual assistance
  • Barrier pivots vertically
  • Boom arm is made of hot-dip galvanised aluminium
  • Red Post is made from steel and can withstand regular impact
  • Features a cylinder locking mechanism and screw anchor fixing
  • Can be used in rural areas without a consistent power supply
  • Pivot post dimensions: H x W x D (mm) 1000 x 220 x 100
  • Base plate dimensions: H x W x D (mm) 10 x 295 x 295
  • Barriers with fixed support posts also available
15-20 working days Delivery info
CodeOverall Length (mm) Opening Width (mm) Weight
(Ex. VAT)
226.24.2833000 189575
226.23.4533500 239585
226.20.2114000 289595
226.23.3584500 3395105
226.26.5595000 3895115
226.20.4455500 4395125
226.26.3886000 4895135
226.28.0936500 5395135
226.23.8277000 5895155
15-20 working days Delivery info

Product description

The ideal solution to parking or roadway access control

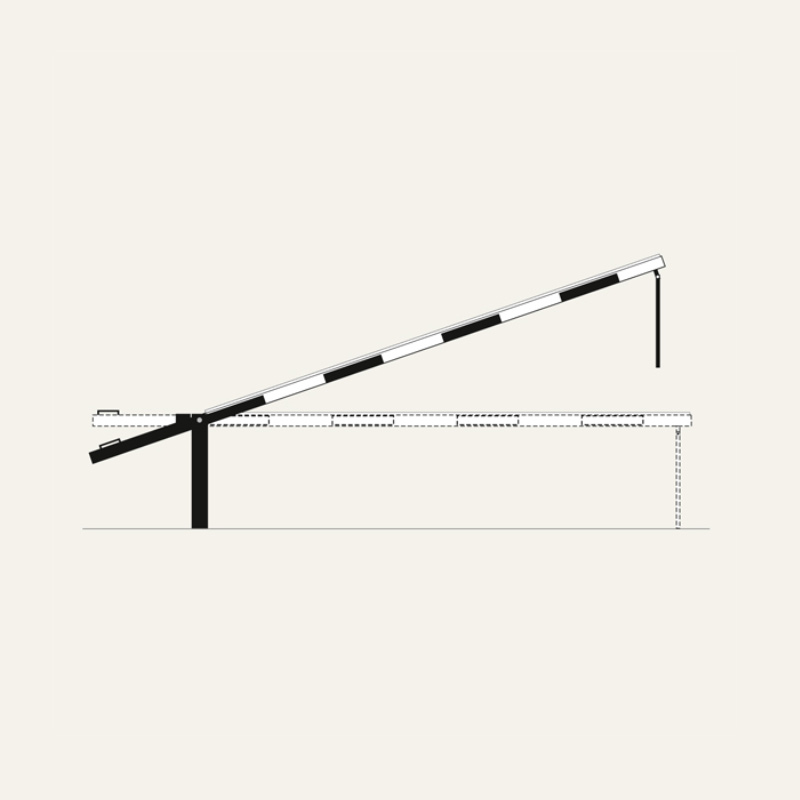

The lifting support post can prove an useful solution for narrow entrances, where fixing a solid post into the concrete would significantly reduce the entrance width, making it difficult for larger vehicles to move in and out. The support can comfortably rest on the ground taking the weight of the post to ensure strain is not put on the mechanism. This can then simply be supported with the boom when lifting.

Our range of counter-balanced rising barriers for car parks and access roads will help ensure that you are able to effectively control all traffic in and out of the area. In busy event centres or offices, as well as places where extra security is an issue, these barriers make controlling vehicular traffic significantly easier. Available in 9 lengths to suit your entrance width.

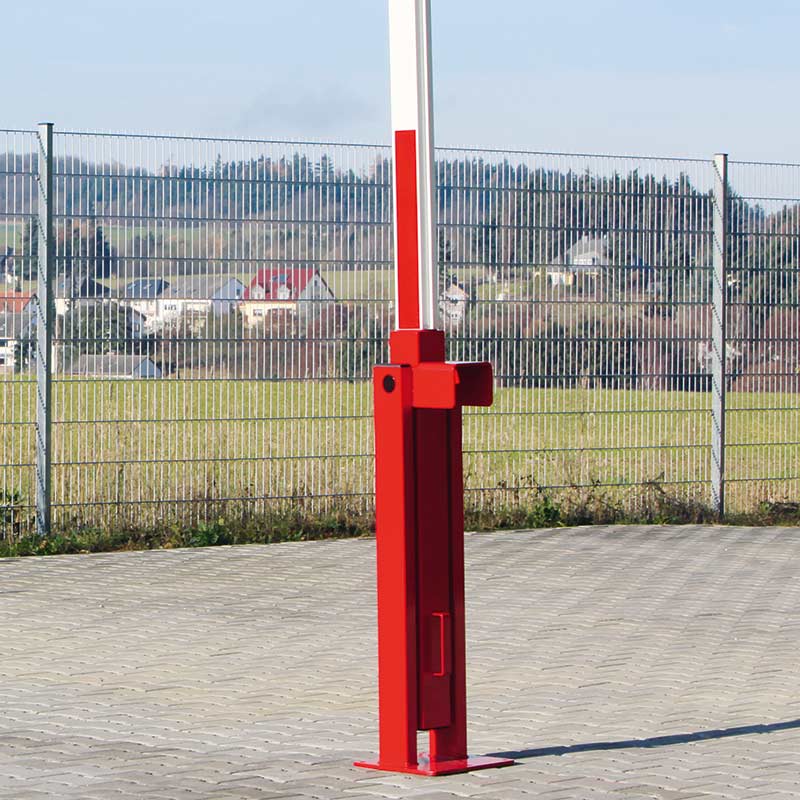

These models feature a counterweight which is incorporated into the barrier arm and an integrated swinging support post, the pivot posts are surface-mounted, which makes installation as simple as possible. The pivot posts are made from hot dipped galavanised steel which has been powder coated red and the barrier booms are made from alumnium, coated with reflective red and white for high visibilty and warning.

These barriers are ideal for events where traffic access needs to be carefully controlled, they are easy and quick to open for when access is permitted and also for situations where security staff are required to check the identification of drivers and passengers or the contents of vehicles.
