Manually Operated Counterweight Entry Barrier - Fixed Support Post

from £1290.70 each (ex. VAT) with free delivery

FREE Shipping on this product

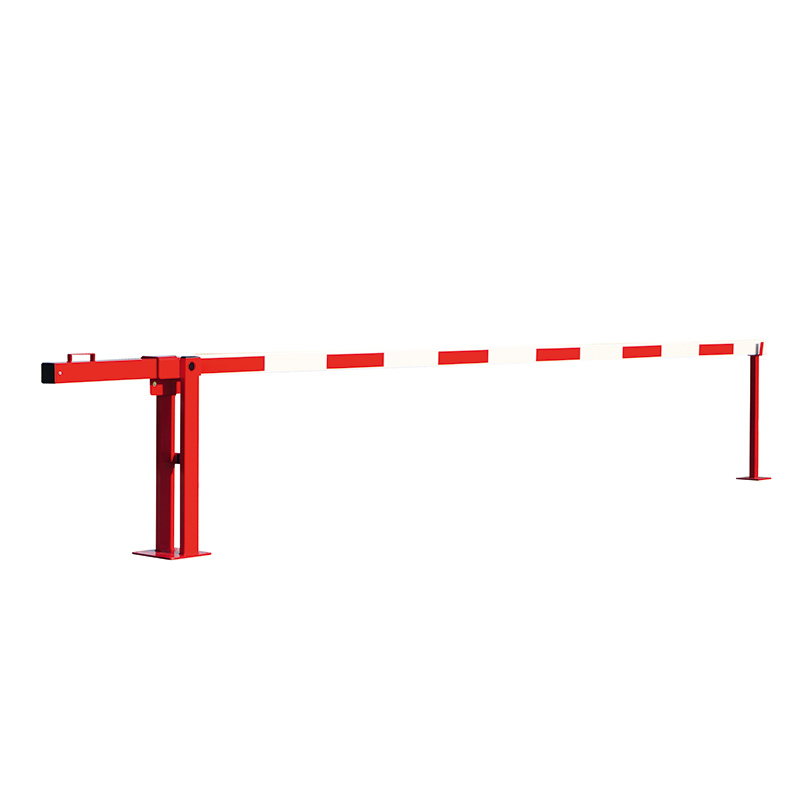

Counter-balanced rising boom barriers with fixed resting post

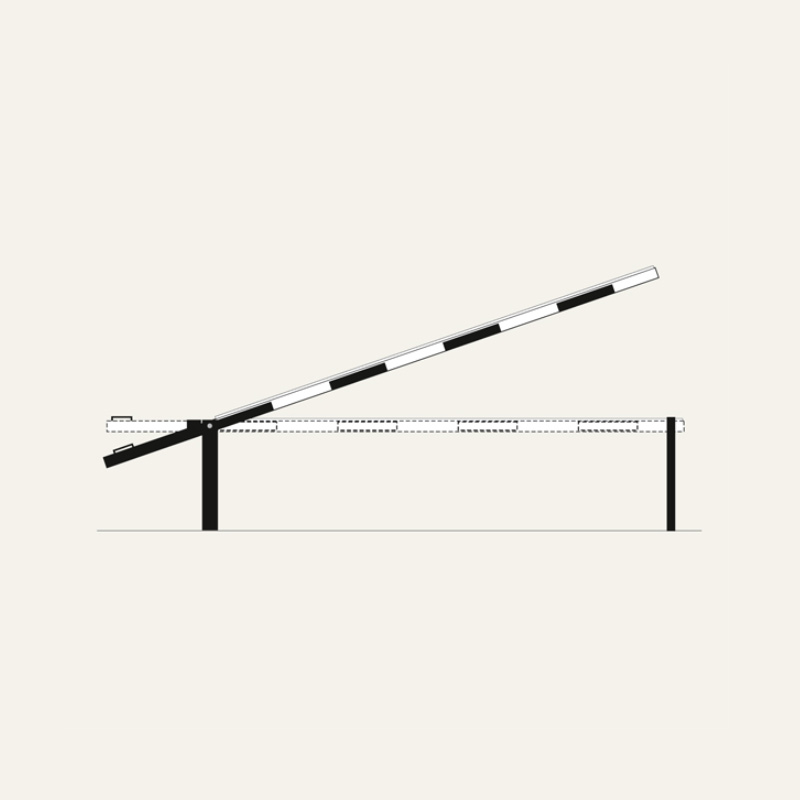

Rising boom barrier arm with fixed post
Supplied in kit form Supplied
in kit form
1 year

Key Features

  • Counter-balanced rising boom barrier arm
  • Separate fixed resting post, provides additional security and restricts access to large vehicles
  • Pivot post dimensions 220mm x 100mm x 1mtr high
  • Pivot post base plate dimensions 295mm x 295mm x 10mm deep
  • Ideal for security checkpoints, factory entrances, office entrances, lorry pull ins and manned car parks
  • Surface-mounted locking pivot posts and surface mounted resting post
  • Aluminium barrier arm 90 x 60mm, red and white reflective coating
  • Hot dipped galvanised powder coated steel pivot post
  • Durable, high-quality steel and aluminium construction
  • Also see these barriers with rising support posts
15-20 working days Delivery info
Order in the next 15 hours 26 minutes for delivery between Friday 9th October and Friday 16th October
CodeOverall Length (mm) Open Width (mm) Weight
(Ex. VAT)
226.29.2744000 2895110
226.25.6504500 3395125
226.29.8565000 3895135
226.27.5295500 4395145
226.25.9346000 4895155
226.24.1336500 5395165
226.28.4017000 5895175
15-20 working days Delivery info
Order in the next 15 hours 26 minutes for delivery between Friday 9th October and Friday 16th October

Product description

Manually operated entrance barrier for security

Featuring a fixed support post. This barrier system can be used for restricting larger vehicles by setting a maximum width to your entrance. The red painted boom rests on the support reducing strain on the mechanism.

This range of counter-balanced rising barriers are suitable for restricting and  allowing controlled access to; car parks, lorry parks, industrial units, warehouses, building sites and agricultural yards. They are especially ideal for sites where there is no power as the barriers are manually controlled and they can locked in the closed or open position.

Available in 7 widths to suit your premises and the size of vehicles you wish to permit access to, the seperate steel rest post effectively restricts access to vehicles wider than the open width of the barrier.

Both the pivot post and the rest post are made from hot dip galvanised steel which is powder coated red and the barrier arm is made from strong lightweight, rust free, aluminium which is colured white with red reflective stripes. The posts are designed for surface fixing.
