Bike Storage Racks - Rail Mount with Alternate Ramps

from £74.95 each (ex. VAT) with free delivery

FREE Shipping on this product
Universal Bike Storage Racks - Rail Mount With Alternate Ramps
1 year
Made to


Key Features

A chance to WIN a Simplehuman bin with orders over £199 entry code SIMPLE
  • Modular system to store the number of bikes you require
  • Single or double sided rail mounted racks available
  • Galvanised tube and bar to BS EN ISO1461, can be used almost anywhere to solve most multiple bike storage solutions
  • MULTI1R is designed for storing bikes on one side only with 970mm long ramps every other bike position, to enable more compact storage

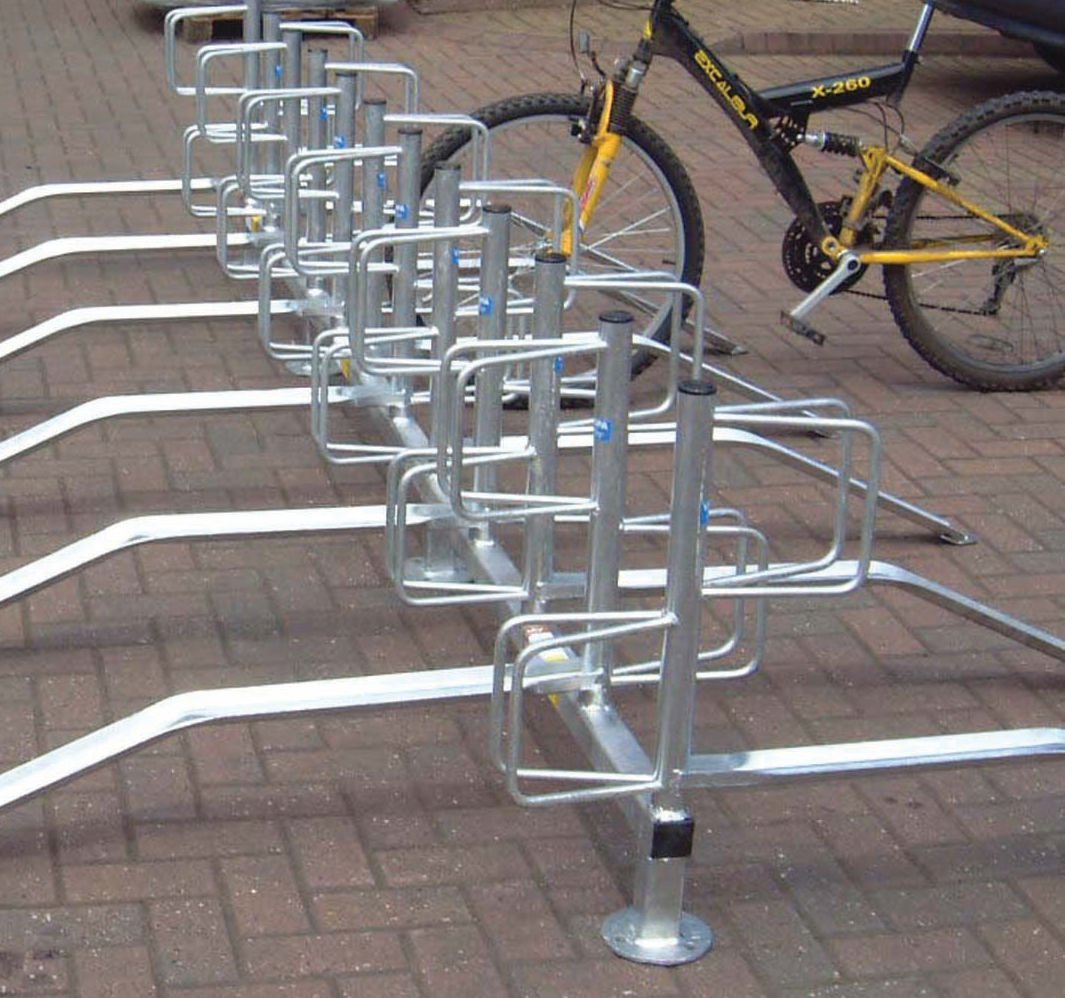

  • MULTI2R is designed for storing bikes on both sides with 970mm long ramps every other bike position, to enable more compact storage
  • All racks are flanged for bolting down and cycles are spaced at 305mm parking centres, providing high density cycle storage
  • Overall height: 686mm
  • Floor fixings not included

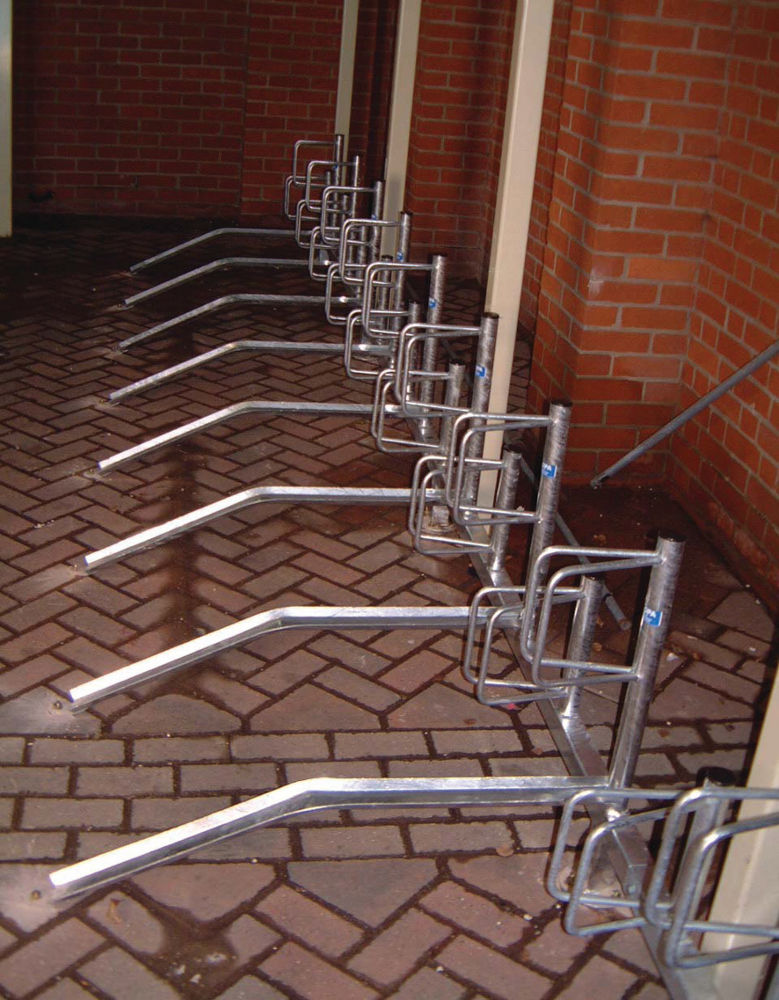

  • The main image shows a single bike rack for 8 bikes. Please select a quantity for 8 if you would like to replicate this
15-20 working days Delivery info
Call us on 0808-223-0187 for further discounts on large orders
CodeImageHeight (mm)Type Price
(Ex. VAT)
MULTI1RMULTI1R686 Single Side Cycle Rack With Alternate Height Ramps
MULTI2RMULTI2R686 Double Sided Cycle Rack With Alternate Height Ramps
15-20 working days Delivery info

Product description

This modular product is made to order to safely store the quantity of bikes you need. To order, simply decide whether you want a single or double sided rack and then enter the number of bikes you require to be stored. Please be aware in order for the racks to be structurally stable there is a minimum of a 3 bike capacity for the single sided racks and a 6 bike capacity for the double sided racks.

As the number of cyclists continues to rise it is essential that businesses & public places have enough secure locations for staff & visitors to safely store their bicycles. These rail mounted bicycle holders make use of a ‘V’ shaped holder that grips each bikes tyre without touching any other part of the bike.

This type of rack provides high density cycle storage, the combination of high and low holders mean that cycles are parked only 305mm apart (typical parking distance for Sheffield typ cycle holders is 500mm) so they are ideal for use in restricted spaces (e.g. cycle shelters) or sites that are often accessed by cyclists (e.g. schools, colleges and universities).

The galvanised steel tube and bar is manufactured to the BS EN ISO1461 British Standards & is supplied with alternate ramps (978mm long) to provide a more compact storage solution. These ramps also enable quick and easy access to locks / chains when needed.

Both the single and double sided racks are 686mm high, made from galvanised steel, surface mounted and are evenly spaced with 305mm between each parking centre.

These are ideal for use with the Cambridge and Canterbury cycle shelters.
